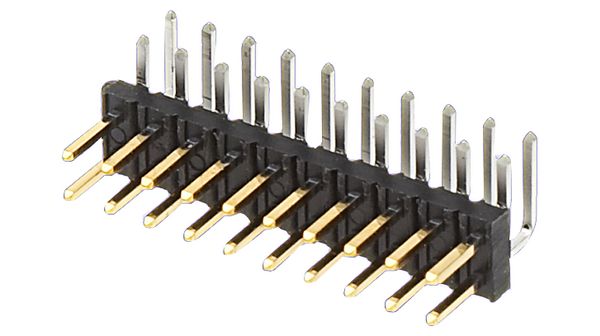

20-position, 2-row unshrouded header with a 2mm pitch, designed for right-angle, through-hole mounting. Features male pin contacts made from bronze and copper alloy, plated with gold and GXT for enhanced conductivity and durability. Rated for 2A current and 650V AC maximum voltage, with a contact mating length of 0.157 inches and a post length of 2.5mm. The black housing is lead-free and RoHS compliant, with overall dimensions of 40mm length, 1.5mm width, and 8.25mm depth.
Voltage Rating650V
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
Amphenol 98423-G61-10LF technical specifications.
General
Color
Black
Contact Gender
Male
Contact Material
Bronze, Copper Alloy
Contact Mating Length
0.157inch
Contact Plating
Gold, GXT
Contact Post Length
2.5mm
Contact Type
Male Pin
Current Rating
2A
Depth
8.25mm
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Length
40mm
Max Voltage Rating (AC)
650V
Mount
Through Hole
Number of Contacts
20
Number of Positions
20
Number of Rows
2
Orientation
Right Angle
Package Quantity
100
Packaging
Bulk
Pitch
2mm
RoHS Compliant
Yes
Row Spacing
0.079inch
Series
Minitek
Termination
Solder
Voltage Rating
650V
Width
1.5mm
Compliance
RoHS
Compliant
Datasheet
Amphenol 98423-G61-10LF Datasheet
Download the complete datasheet for Amphenol 98423-G61-10LF to view detailed technical specifications.
