This straight, male, free-hanging cable mount power connector features a 6.35mm (1/4 inch) mono audio type with two positions and two terminals. It offers a 10A current rating and a 1.5kV voltage rating, with gold-plated brass contacts and nickel plating. The connector has a black body, a diameter of 13.8mm, and a length of 79mm, operating within a temperature range of -25°C to 75°C. UL94 V-0 flammability rating and RoHS compliance are included.
Storage6.35mm
Voltage Rating1.5kV
Current Rating10A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol ACPM-GB-AU technical specifications.
General
| Audio Type | MONO |
| Body Color | Black |
| Color | Black, Silver |
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 10A |
| Diameter | 13.8mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Length | 79mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -25°C |
| Mount | Free Hanging, Cable |
| Number of Ports | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Plating | Nickel |
| RoHS Compliant | Yes |
| Series | M |
| Shielding | Unshielded |
| Size | 6.35mm |
| Termination | Solder |
| Voltage Rating | 1.5kV |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol ACPM-GB-AU Datasheet
Download the complete datasheet for Amphenol ACPM-GB-AU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

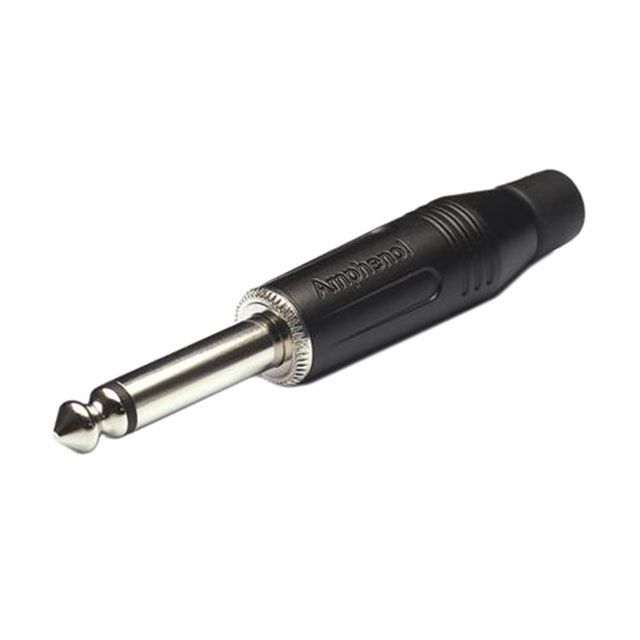

Product Images
