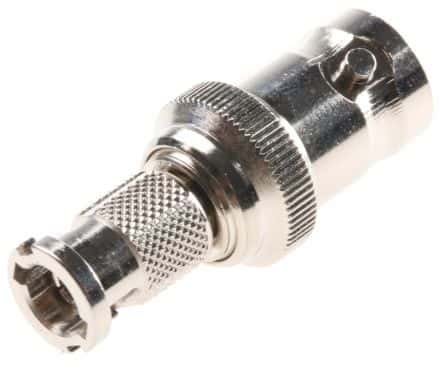

This straight RF connector adapter facilitates a 75 Ohm impedance connection between BNC and HD-BNC interfaces, featuring male-to-female plug-to-jack configuration. Constructed with a brass body plated in nickel and a PTFE dielectric, it utilizes gold-plated copper center contacts for optimal signal integrity. Operating from DC up to 3 GHz with a maximum frequency of 3 GHz, this free-hanging adapter supports 500 mating cycles and operates within a temperature range of -65°C to 165°C. RoHS compliant, this component is designed for reliable performance in various RF applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Amphenol APH-BNCJ-HDBNCP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Adapter Style | Straight |
| Body Material | Brass |
| Body Plating | Nickel |
| Center Contact Plating | Gold |
| Contact Material | Copper |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Gender Type A | Female |
| Impedance | 75R |
| Insulation Material | Polytetrafluoroethylene |
| Length | 29.32mm |
| Mating Cycles | 500 |
| Max Frequency | 3GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging |
| Operating Frequency | 0 to 3 GHz |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Nickel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HD-BNC |
| RoHS | Compliant |
