22-contact, male pin, straight orientation circular connector with a receptacle gender. Features a durable aluminum alloy body and shell, plated with cadmium for environmental resistance. Offers gold-plated copper alloy contacts with a 5A current rating and a wide operating temperature range of -65°C to 175°C. Designed for panel, bulkhead, and jam nut mounting, this shielded connector conforms to MIL-DTL-38999 Series III standards.
Current Rating5A
MountingPanel, Bulkhead, Front Side Nut, Jam Nut
Quick Jump:
Technical Specifications
Amphenol D38999/24WC35PN technical specifications.
General
| Body Material | Aluminium |
| Color | Green |
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Style | Pin |
| Current Rating | 5A |
| Depth | 34.93mm |
| Features | Shielded |
| Gender | Receptacle |
| Length | 31.9mm |
| Max Operating Temperature | 175°C |
| Military Standard | MIL-DTL-38999 |
| Min Operating Temperature | -65°C |
| Mount | Panel, Bulkhead, Front Side Nut, Jam Nut |
| Number of Contacts | 22 |
| Number of Positions | 22 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Ratings | Environment Resistant |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | Military, MIL-DTL-38999 Series III, Tri-Start™ |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Shell Plating | Cadmium |
| Shell Size | 13 |
| Shielding | Shielded |
| Strain Relief | No (Without) |
| Termination | Crimp |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol D38999/24WC35PN Datasheet
Download the complete datasheet for Amphenol D38999/24WC35PN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

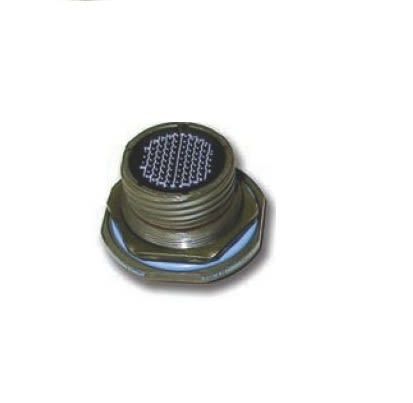

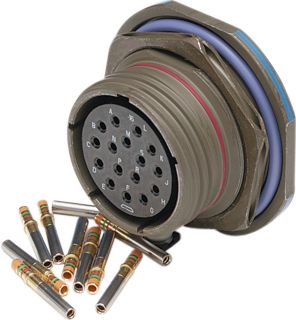

Product Images
