Shielded, environment-resistant circular MIL-DTL-38999 Series III receptacle with 55 male contacts. Features a straight, panel-mount aluminum body with cadmium plating and gold-plated copper alloy contacts. Operates within a temperature range of -65°C to 200°C, with a 5A current rating. Crimp termination and a shell size of 17.
Current Rating5A
MountingPanel, Flanges
Quick Jump:
Technical Specifications
Amphenol D3899920WE35PN technical specifications.
General
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Gold |
| Contact Plating | Gold |
| Current Rating | 5A |
| Depth | 33.7mm |
| Features | Shielded |
| Gender | Receptacle |
| Length | 32.74mm |
| Max Operating Temperature | 200°C |
| Military Standard | MIL-DTL-38999 |
| Min Operating Temperature | -65°C |
| Mount | Panel, Flanges |
| Number of Contacts | 55 |
| Number of Positions | 55 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Cadmium |
| Ratings | Environment Resistant |
| Reach SVHC Compliant | Unknown |
| Series | Military, MIL-DTL-38999 Series III, Tri-Start™ |
| Shell Material | Aluminium |
| Shell Plating | Cadmium |
| Shell Size | 17 |
| Strain Relief | No (Without) |
| Termination | Crimp |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol D3899920WE35PN Datasheet
Download the complete datasheet for Amphenol D3899920WE35PN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

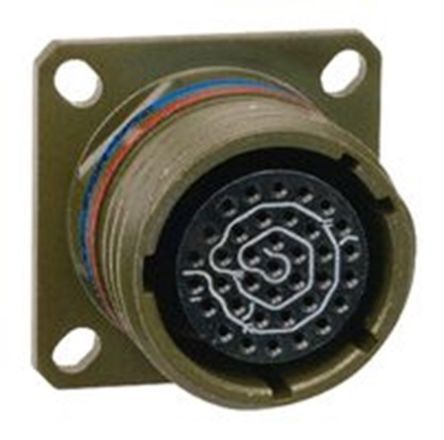

Product Images
