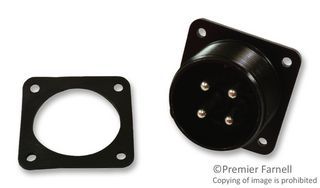

This 4-contact receptacle connector features a current rating of 46A and a DC rated voltage of 350V. The connector body is made of aluminium and the contacts are made of copper alloy with a silver plating. It is designed for box mounting and is suitable for use with 8AWG wire or cable. The connector meets the requirements for general use.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Amphenol DL3102A22-22P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Amphenol DL3102A22-22P technical specifications.
| Body Material | Aluminium |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Current Rating | 46A |
| Gender | Receptacle |
| Mount | Box |
| Number of Contacts | 4 |
| Reach SVHC Compliant | Unknown |
| Series | DL |
| Termination | Solder |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 350V |
| Wire/Cable Gauge | 8AWG |
| RoHS | Compliant |
