Right-angle RF F connector, male, board mount with solder termination. Features a ZINC DIE CAST and Brass body with Tin plating, and a Brass center contact with Gold plating. Dielectric is PTFE, insulation is Polymethylpen, and impedance is 50 Ohms. Operates from 0 to 4 GHz with a maximum frequency of 6 GHz, offering 0.3dB insertion loss and 100 mating cycles. Rated for -65°C to 165°C, this RoHS compliant component is lead-free.
Frequency6GHz
PackageSMB
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Amphenol FA1-NCRP-PCB-8 technical specifications.
General
| Body Material | ZINC DIE CAST, Brass |
| Body Plating | Tin |
| Package/Case | SMB |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Gender | Male |
| Housing Color | Blue |
| Impedance | 50R |
| Insertion Loss | 0.3dB |
| Insulation Material | Polymethylpen |
| Lead Free | Lead Free |
| Mating Cycles | 100 |
| Max Frequency | 6GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Ports | 1 |
| Operating Frequency | 0 to 4 GHz |
| Orientation | Right Angle |
| Packaging | Bulk |
| Polarity | Standard |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol FA1-NCRP-PCB-8 Datasheet
Download the complete datasheet for Amphenol FA1-NCRP-PCB-8 to view detailed technical specifications.
No datasheet is available for this part.

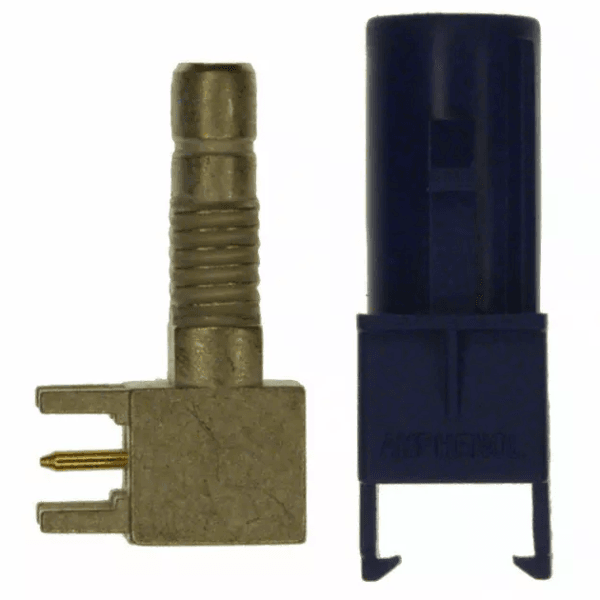

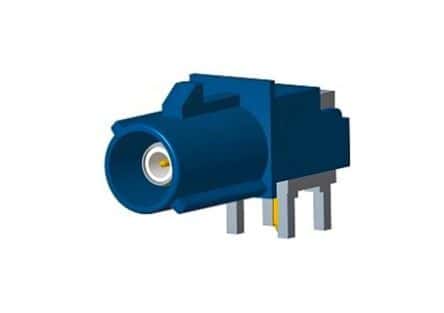

Product Images
