Four-position circular connector featuring male copper alloy contacts with silver plating, rated for 46A and 700V. This straight, panel-mount receptacle has an aluminum shell and body, designed for crimp termination of wire gauges from 8AWG to 10AWG. It meets MIL-DTL-5015 standards and offers IP67, waterproof, and dust-tight ratings, operating between -55°C and 125°C.
PackageMetal
Voltage Rating700V
Current Rating46A
MountingPanel, Flanges
Quick Jump:
Technical Specifications
Amphenol GTC03022-22P(025) technical specifications.
General
| Body Material | Aluminium |
| Package/Case | Metal |
| Color | Black |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Silver |
| Current Rating | 46A |
| Gender | Receptacle |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-5015 |
| Min Operating Temperature | -55°C |
| Mount | Panel, Flanges |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | GT, MIL-5015 Derivative |
| Shell Material | Aluminium |
| Shell Size | 22 |
| Termination | Crimp |
| Voltage Rating | 700V |
| Wire Gauge (Max) | 10AWG |
| Wire Gauge (Min) | 8AWG |
| Wire/Cable Gauge | 8AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol GTC03022-22P(025) Datasheet
Download the complete datasheet for Amphenol GTC03022-22P(025) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

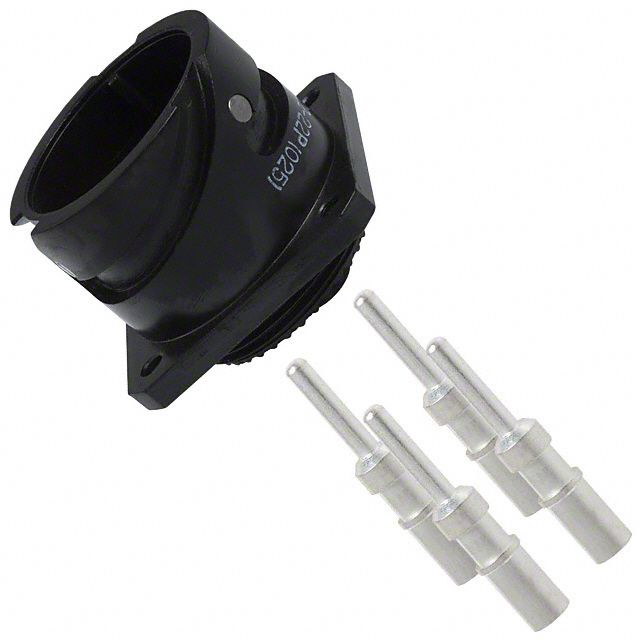

Product Images
