1mm pitch, 20-position, single-row female card edge connector with straight, through-hole solder termination. Features bronze contacts with tin plating, a 1A current rating, and a 100V voltage rating. Operates within a -55°C to 85°C temperature range and boasts a UL94 V-0 flammability rating. Housing is black and lead-free.
Voltage Rating100V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Amphenol HLW20S-2C7LF technical specifications.
General
| Contact Location | Top |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 1A |
| Depth | 3.9mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 22.6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 100V |
| Max Voltage Rating (DC) | 100V |
| Mount | Through Hole |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 110 |
| Packaging | Tray |
| Pitch | 1mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | HLW-S |
| Termination | Through Hole |
| Voltage Rating | 100V |
| Voltage Rating (AC) | 100V |
| Width | 3.9mm |
| Wire/Cable Type | Straight |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol HLW20S-2C7LF Datasheet
Download the complete datasheet for Amphenol HLW20S-2C7LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

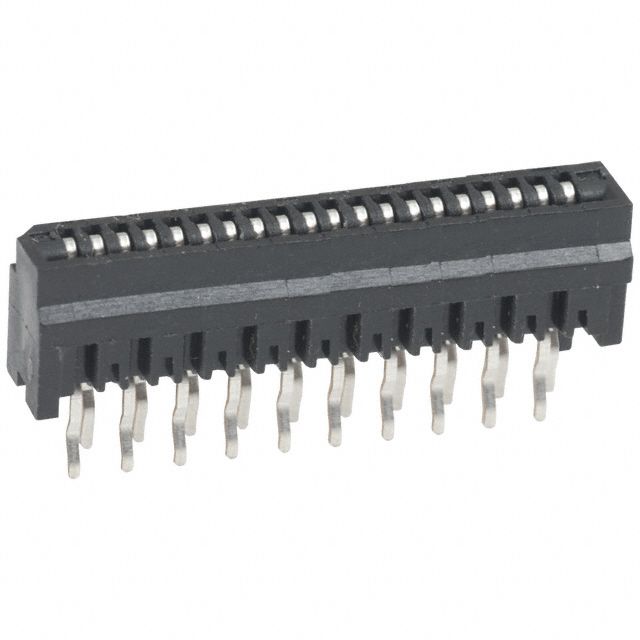

Product Images
