Right-angle, 26-position D-Subminiature receptacle with 3 rows, designed for signal applications. Features copper alloy contacts with gold plating, a 3A current rating, and a 300V voltage rating. The black, UL94 V-0 rated housing ensures durability, with a pitch of 2.28mm and a solder termination. Operating temperature range is -55°C to 125°C.
Voltage Rating300V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Amphenol ICD26S13E4GX00LF technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Signal |
| Current Rating | 3A |
| Depth | 21.7mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 39.14mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 300V |
| Mount | Through Hole |
| Number of Contacts | 26 |
| Number of Ports | 1 |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Orientation | Right Angle |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pitch | 2.28mm |
| Radiation Hardening | No |
| Series | ICD |
| Shell Size | A |
| Termination | Solder |
| Voltage Rating | 300V |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol ICD26S13E4GX00LF Datasheet
Download the complete datasheet for Amphenol ICD26S13E4GX00LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

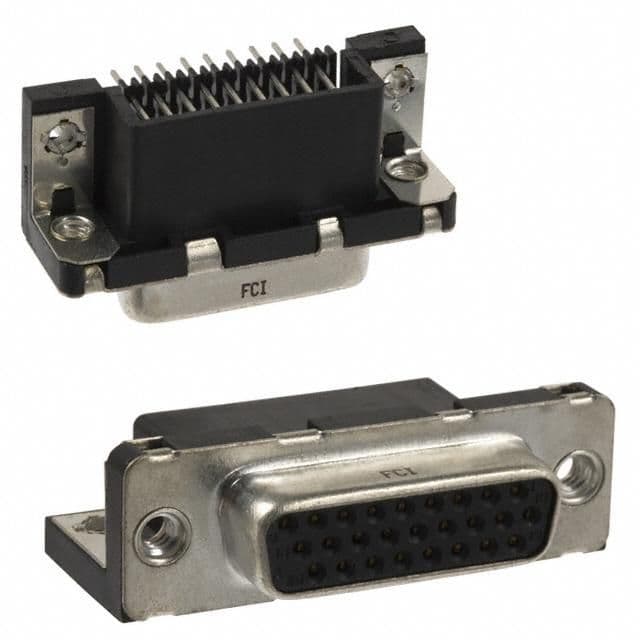

Product Images
