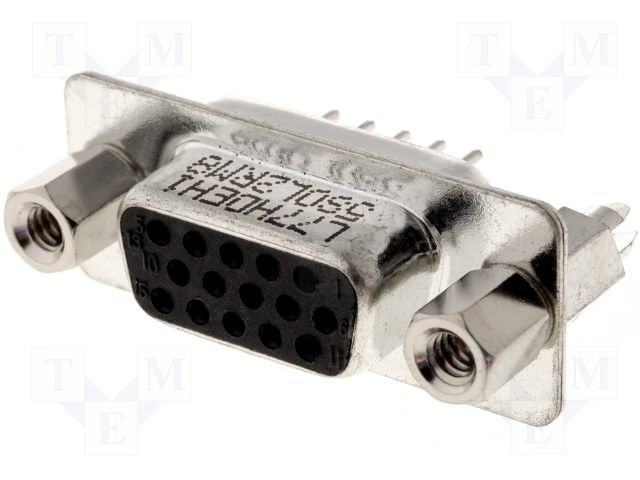

This 15-position, 3-row female through-hole connector features 15 signal contacts and a maximum operating temperature of 155°C. It is designed for use with a maximum supply voltage of 250V AC and has a current rating of 3A. The connector is made of steel with a gold-plated bronze contact and is available in a tray packaging with 90 pieces. It is compliant with RoHS regulations and has a pitch of 2.29mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Amphenol L77HDEH15SOL2RM8 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Amphenol L77HDEH15SOL2RM8 technical specifications.
| Body Material | Steel |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Contact Type | Signal |
| Current Rating | 3A |
| Depth | 12.55mm |
| Gender | Female |
| Length | 30.84mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage (AC) | 250V |
| Mount | Through Hole |
| Number of Contacts | 15 |
| Number of Ports | 1 |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Orientation | Straight |
| Package Quantity | 90 |
| Packaging | Tray |
| Pitch | 2.29mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | HD |
| Shell Material | Steel |
| Shell Size | E |
| Termination | Solder |
| Voltage Rating | 250V |
| RoHS | Compliant |
