9-contact, female D-Subminiature connector with a 2.77mm pitch and straight, solder termination. Features brass/bronze contacts with gold plating, a steel shell, and a 5A current rating. This receptacle offers a 250V voltage rating and operates within a -55°C to 105°C temperature range. Designed for free hanging or panel mounting, it is RoHS compliant and UL approved.
PackageSOD
Voltage Rating250V
Current Rating5A
MountingFree Hanging, Panel
Quick Jump:
Technical Specifications
Amphenol L77SDE09S technical specifications.
General
| Approvals | UL |
| Body Material | Metal, Steel |
| Package/Case | SOD |
| Color | Black |
| Contact Gender | Female |
| Contact Material | Brass, Bronze, Gold |
| Contact Plating | Gold |
| Contact Type | Signal |
| Current Rating | 5A |
| Depth | 15.65mm |
| Gender | Female |
| Lead Free | Lead Free |
| Length | 30.89mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Panel |
| Number of Contacts | 9 |
| Number of Ports | 1 |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 2.77mm |
| Plating | Tin, Steel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SD |
| Shell Material | Steel |
| Shell Size | E |
| Termination | Solder |
| Voltage Rating | 250V |
| Width | 12.55mm |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol L77SDE09S Datasheet
Download the complete datasheet for Amphenol L77SDE09S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

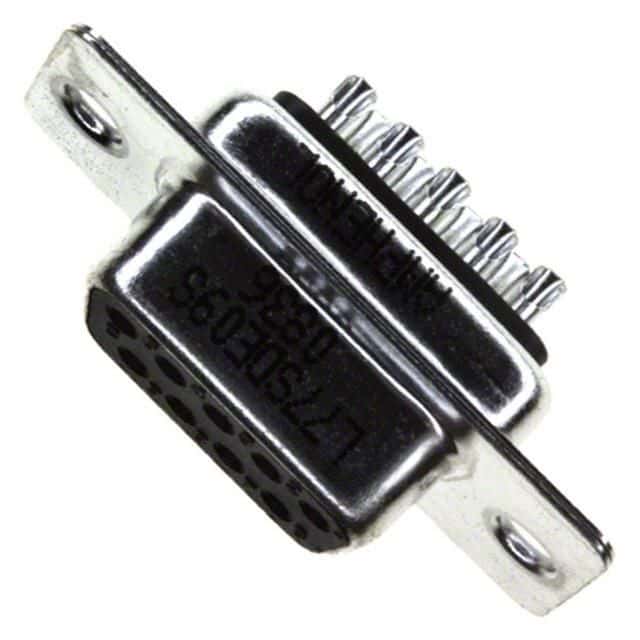

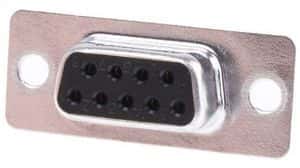

Product Images
