This 12-pin military circular connector features a nickel-plated aluminium body with a silver finish. It has a straight orientation and an outside diameter of 0.86inch. The connector is cable mounted and unshielded, with a wire/cable diameter of 10.57mm. It meets the military standard MIL-DTL-26482 and is compliant with RoHS regulations.
MountingCable
Quick Jump:
Technical Specifications
Amphenol M85049/52-1-12N technical specifications.
General
| Body Material | Aluminium |
| Color | Silver |
| Finish | Nickel |
| Material | Aluminium |
| Military Standard | MIL-DTL-26482 |
| Mount | Cable |
| Orientation | Straight |
| Outside Diameter | 0.86inch |
| Package Quantity | 1 |
| Plating | Electroless Nickel |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Military, SAE AS85049 |
| Shell Size | 12 |
| Shielding | Unshielded |
| Wire/Cable Diameter | 10.57mm |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol M85049/52-1-12N Datasheet
Download the complete datasheet for Amphenol M85049/52-1-12N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

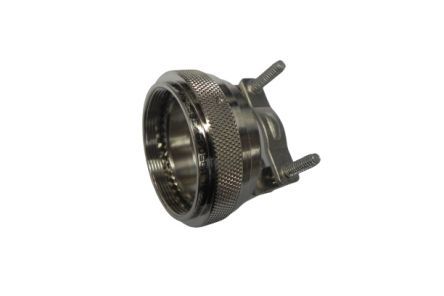

Product Images
