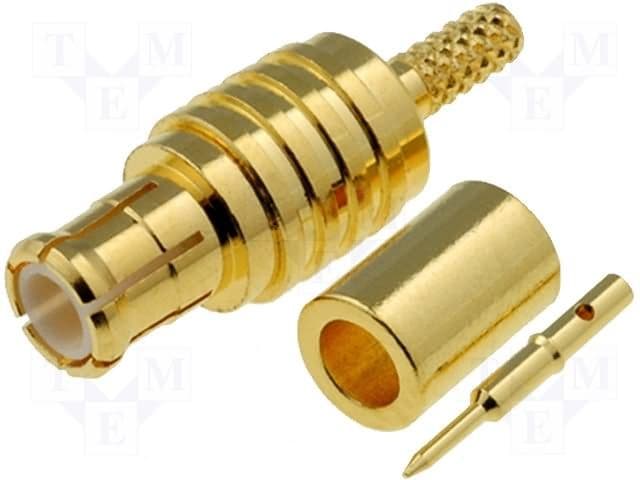

This cable mount RF connector features a brass body with gold plating, a 50R impedance, and operates from 0 to 6 GHz. It has a maximum operating temperature of 165°C and a minimum operating temperature of -65°C. The connector is not radiation hardened and is not compliant with Reach SVHC or RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Amphenol MCX1121A1-3GT30G-14-50 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass |
| Body Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Impedance | 50R |
| Insertion Loss | 0.1dB |
| Insulation Material | PTFE |
| Length | 15.2mm |
| Material | Brass |
| Max Frequency | 6GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Cable |
| Operating Frequency | 0 to 6 GHz |
| Orientation | Straight |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Termination | Crimp |
| VSWR | 1.3 |
| RoHS | Not CompliantNo |
