Circular connector, male gender, featuring 37 positions with male copper contacts and gold plating. This MIL-DTL-38999 Series I connector boasts an aluminium body with cadmium shell plating, rated for 5A current and operating temperatures from -65°C to 175°C. Designed for straight orientation, it is a cable mount, free-hanging type with crimp termination and a shell size of 15.
Current Rating5A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol MS27467P15B35P technical specifications.
General
| Body Material | Aluminium |
| Contact Gender | Male |
| Contact Material | Copper |
| Contact Plating | Gold |
| Current Rating | 5A |
| Features | Shielded |
| Gender | Male |
| Length | 38.88mm |
| Max Operating Temperature | 175°C |
| Military Standard | MIL-DTL-38999 |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 37 |
| Number of Positions | 37 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Cadmium |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | Military, MIL-DTL-38999 Series I |
| Shell Plating | Cadmium |
| Shell Size | 15 |
| Strain Relief | No (Without) |
| Termination | Crimp |
Compliance
| RoHS | Not Compliant |
Datasheet
Amphenol MS27467P15B35P Datasheet
Download the complete datasheet for Amphenol MS27467P15B35P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

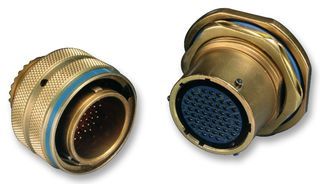

Product Images
