Environmentally resistant circular connector, MIL-DTL-38999 Series I, featuring 100 female crimp contacts. Constructed with an aluminum alloy shell and body, it offers a straight, free-hanging or cable mount orientation. Contacts are gold-plated copper or copper alloy, rated for 5A current. Operating temperature range spans from -65°C to 175°C.
Current Rating5A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol MS27467T23B35S technical specifications.
General
| Body Material | Aluminium |
| Contact Gender | Female |
| Contact Material | Copper, Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 5A |
| Features | Shielded |
| Gender | Male |
| Max Operating Temperature | 175°C |
| Military Standard | MIL-DTL-38999 |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 100 |
| Number of Positions | 100 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Cadmium |
| Radiation Hardening | No |
| Ratings | Environment Resistant |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | Military, MIL-DTL-38999 Series I |
| Shell Material | Aluminium |
| Shell Size | 23 |
| Termination | Crimp |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol MS27467T23B35S Datasheet
Download the complete datasheet for Amphenol MS27467T23B35S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

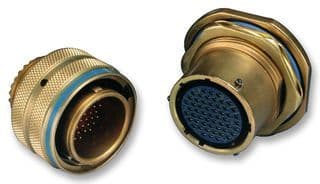

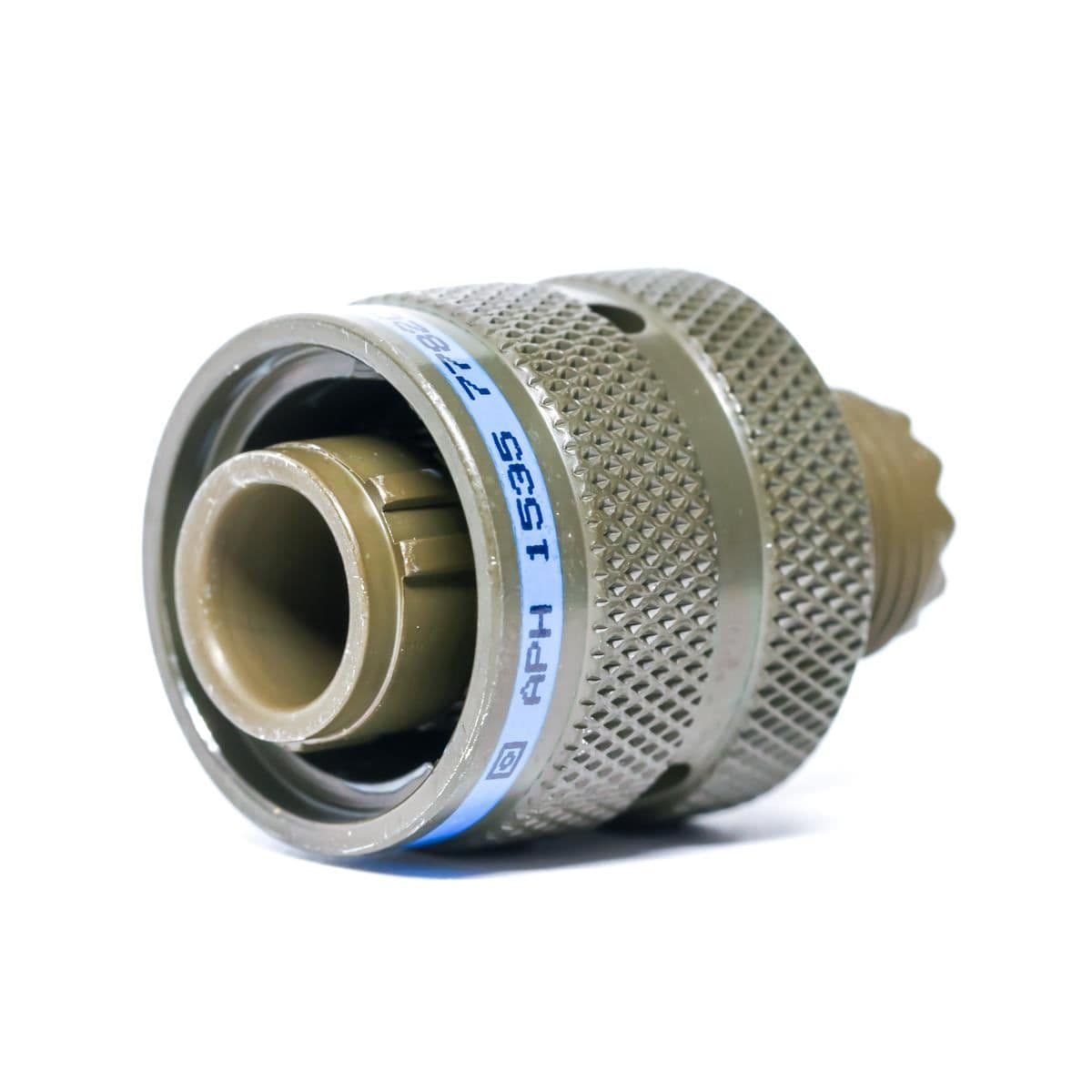

Product Images
