Environmentally resistant circular connector featuring 61 male copper alloy contacts with gold plating, designed for crimp termination. This straight, cable-mount component boasts an aluminum shell with cadmium plating, suitable for operation between -65°C and 175°C. Adhering to MIL-DTL-38999 Series I, LJT standards, it offers shielded connectivity for demanding applications.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol MS27467T25B61PD technical specifications.
General
| Body Material | Aluminium |
| Color | Green |
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Gender | Male |
| Length | 30.96mm |
| Max Operating Temperature | 175°C |
| Military Standard | MIL-DTL-38999 |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 61 |
| Number of Positions | 61 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Cadmium |
| Radiation Hardening | No |
| Ratings | Environment Resistant |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | Military, MIL-DTL-38999 Series I, LJT |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Shell Plating | Cadmium |
| Shell Size | 25 |
| Shielding | Shielded |
| Strain Relief | No (Without) |
| Termination | Crimp |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol MS27467T25B61PD Datasheet
Download the complete datasheet for Amphenol MS27467T25B61PD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

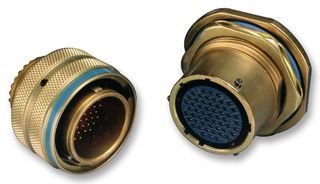

Product Images
