MIL-SPEC circular receptacle connector featuring 4 female socket contacts made from copper alloy with silver plating. This straight, unshielded connector boasts a 46A current rating and 700V DC voltage rating, suitable for operation between -55°C and 125°C. The aluminum alloy shell, size 22, is cadmium plated and designed for panel or flange mounting with solder termination.
Voltage Rating700V
Current Rating46A
MountingPanel, Flanges, Box
Quick Jump:
Technical Specifications
Amphenol MS3102E22-22S technical specifications.
General
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Color | Green, Black |
| Contact Finish - Mating | SILVER |
| Contact Gender | Female |
| Contact Material | Copper Alloy, Brass, Copper |
| Contact Plating | Silver |
| Contact Style | Socket |
| Contact Type | Socket |
| Current Rating | 46A |
| Depth | 41.27mm |
| Gender | Receptacle |
| Length | 38.91mm |
| Material | Ferrite |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-5015 |
| Min Operating Temperature | -55°C |
| Mount | Panel, Flanges, Box |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Ratings | Environment Resistant |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | MIL-5015 Type |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Shell Plating | Cadmium |
| Shell Size | 22 |
| Shielding | Unshielded |
| Strain Relief | No (Without) |
| Termination | Solder |
| Voltage Rating | 700V |
| Voltage Rating (AC) | 714mV |
| DC Rated Voltage | 700V |
| Wire Gauge (Max) | 10AWG |
| Wire Gauge (Min) | 8AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol MS3102E22-22S Datasheet
Download the complete datasheet for Amphenol MS3102E22-22S to view detailed technical specifications.
No datasheet is available for this part.

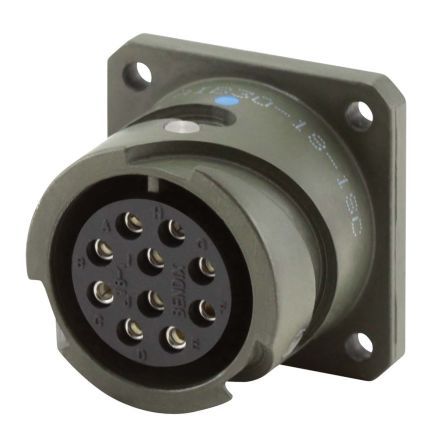

Product Images
