Circular connector featuring 2 female socket contacts with silver plating, rated for 13A and 700V. This straight, cable-mount component has an aluminum body with cadmium plating and a black finish, designed for solder termination. It operates within a temperature range of -55°C to 125°C and includes strain relief. Conforming to MIL-DTL-5015 standards, it supports wire gauges from 16AWG to 20AWG.
PackageMetal
Voltage Rating700V
Current Rating13A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol MS3106F10SL-4S technical specifications.
General
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Package/Case | Metal |
| Color | Black |
| Contact Gender | Female |
| Contact Material | Copper, Copper Alloy, Brass |
| Contact Plating | Silver |
| Contact Type | Socket |
| Current Rating | 13A |
| Length | 54.07mm |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-5015 |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Ratings | Environment Resistant |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | MIL-DTL-5015 |
| Shell Material | Aluminium |
| Shell Plating | Cadmium |
| Shell Size | 10 |
| Strain Relief | Yes (With) |
| Termination | Solder |
| Voltage Rating | 700V |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 16AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol MS3106F10SL-4S Datasheet
Download the complete datasheet for Amphenol MS3106F10SL-4S to view detailed technical specifications.
No datasheet is available for this part.

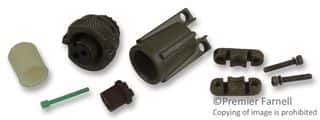

Product Images
