Environmentally resistant, MIL-DTL-5015 compliant circular connector featuring a 7-contact female configuration. This right-angle plug offers solder termination with brass, copper alloy, or copper contacts plated in silver. The aluminum alloy body is cadmium plated with chromate, providing a robust solution for demanding applications. Designed for free-hanging, cable mounting, this connector operates within a temperature range of -55°C to 125°C.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol MS3108E18-9S technical specifications.
General
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Contact Gender | Female |
| Contact Material | Brass, Copper Alloy, Copper |
| Contact Plating | Silver |
| Gender | Female |
| Length | 69.3mm |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-5015 |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 7 |
| Number of Positions | 7 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Ratings | Environment Resistant |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | MIL-5015 Type |
| Shell Plating | Cadmium |
| Shell Size | 18 |
| Strain Relief | No (Without) |
| Termination | Solder |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol MS3108E18-9S Datasheet
Download the complete datasheet for Amphenol MS3108E18-9S to view detailed technical specifications.
No datasheet is available for this part.

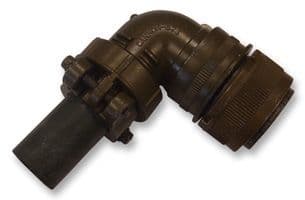

Product Images
