3-contact, right-angle circular connector featuring a female solder termination. Constructed with an aluminum alloy shell and body, it offers a temperature range of -55°C to 125°C. Contacts are copper alloy with gold and silver plating, and the shell is cadmium plated. This environment-resistant, unshielded plug is designed for free-hanging, cable mounting.
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol MS3108E20-3S technical specifications.
General
| Body Material | Aluminium |
| Color | Green |
| Contact Finish - Mating | SILVER |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold, Silver |
| Gender | Female |
| Length | 77.63mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Orientation | Right Angle |
| Packaging | Bulk |
| Plating | Cadmium |
| Radiation Hardening | No |
| Ratings | Environment Resistant |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | MIL-DTL-5015 |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Shielding | Unshielded |
| Strain Relief | No (Without) |
| Termination | Solder |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol MS3108E20-3S Datasheet
Download the complete datasheet for Amphenol MS3108E20-3S to view detailed technical specifications.
No datasheet is available for this part.

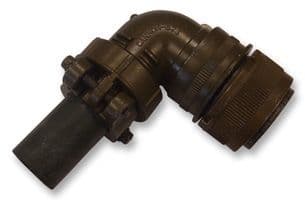

Product Images
