This MIL-SPEC circular connector, a receptacle with 32 female socket contacts, features gold-plated copper alloy contacts for reliable mating. Its aluminum alloy shell, finished with cadmium and chromate, provides environmental resistance and a straight, panel-mount orientation. Rated for 600V and 7.5A, it operates across a wide temperature range of -55°C to 125°C, accommodating wire gauges from 20 to 24 AWG.
Voltage Rating600V
Current Rating7.5A
MountingPanel, Flanges, Box
Quick Jump:
Technical Specifications
Amphenol MS3112E18-32S technical specifications.
General
| Approvals | UL |
| Body Material | Aluminium |
| Color | Green |
| Contact Finish - Mating | GOLD |
| Contact Gender | Female |
| Contact Material | Copper Alloy, Copper, Gold |
| Contact Plating | Gold |
| Contact Type | Socket |
| Current Rating | 7.5A |
| Gender | Receptacle |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-26482 |
| Min Operating Temperature | -55°C |
| Mount | Panel, Flanges, Box |
| Number of Contacts | 32 |
| Number of Positions | 32 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Ratings | Environment Resistant |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | MS3112 |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Shell Size | 18 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol MS3112E18-32S Datasheet
Download the complete datasheet for Amphenol MS3112E18-32S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

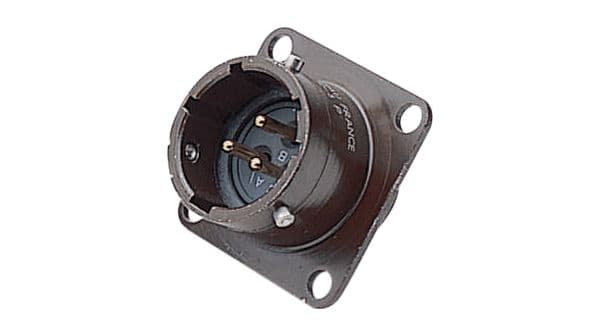

Product Images
