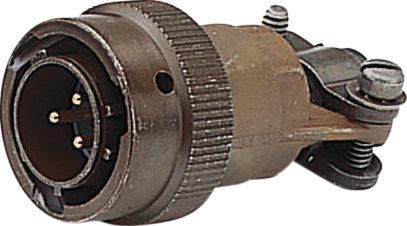

Environmentally resistant, MIL-DTL-26482 compliant circular connector featuring a straight, male plug with 3 gold-plated copper alloy pin contacts. This free-hanging, cable-mount component utilizes solder termination and supports a wire gauge range of 16 to 22 AWG. Rated for 13A current and 1kV voltage, it operates within a temperature range of -55°C to 125°C. The aluminum alloy shell, size 12, is finished with cadmium and chromate plating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Amphenol MS3116F12-3P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL |
| Body Material | Aluminium |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper, Gold |
| Contact Plating | Gold |
| Contact Type | Pin |
| Current Rating | 13A |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-26482 |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Positions | 3 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Ratings | Environment Resistant |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | MS3116 |
| Shell Material | Aluminium |
| Shell Size | 12 |
| Termination | Solder |
| Voltage Rating | 1kV |
| Voltage Rating (AC) | 1kV |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 16AWG |
| RoHS | Not Compliant |
