Environmentally resistant, MIL-DTL-26482 compliant circular connector featuring 12 female socket contacts with gold-plated copper alloy construction. This straight, free-hanging plug offers a 13A current rating and 600V voltage rating, with solder termination suitable for wire gauges from 20AWG to 24AWG. The aluminum alloy shell, size 14, is finished in green with cadmium and chromate plating, operating within a -55°C to 125°C temperature range.
Voltage Rating600V
Current Rating13A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol MS3116F14-12S technical specifications.
General
| Approvals | UL |
| Body Material | Aluminium |
| Color | Green |
| Contact Gender | Female |
| Contact Material | Copper Alloy, Copper, Gold |
| Contact Plating | Gold |
| Contact Type | Socket |
| Current Rating | 13A |
| Insulation Material | Rubber |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-26482 |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Positions | 12 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Ratings | Environment Resistant |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Shell Material | Aluminium |
| Shell Size | 14 |
| Termination | Solder |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 20AWG |
| Wire/Cable Gauge | 16AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol MS3116F14-12S Datasheet
Download the complete datasheet for Amphenol MS3116F14-12S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

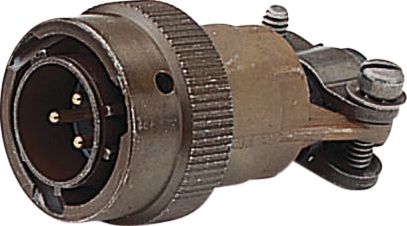

Product Images
