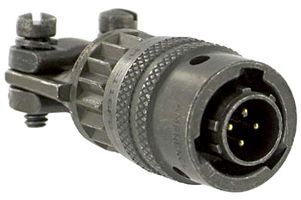

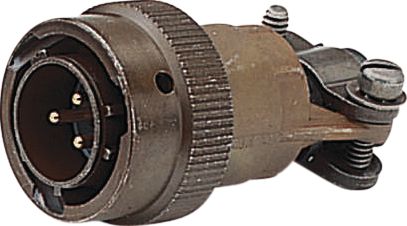

MIL Series circular connector, featuring 4 male pin contacts with gold plating and solder termination. This straight plug offers a 7.5A current rating and 600V voltage rating, with a robust aluminum alloy shell and rubber insulation. Operating across a wide temperature range of -55°C to 125°C, it meets MIL-DTL-26482 standards and includes strain relief.
PackageMetal
Voltage Rating600V
Current Rating7.5A
MountingCable, Free Hanging
Quick Jump:
Technical Specifications
Amphenol MS3116F8-4P technical specifications.
General
| Approvals | UL |
| Body Material | Aluminium |
| Package/Case | Metal |
| Color | Green |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Type | Pin |
| Current Rating | 7.5A |
| Depth | 20.62mm |
| Gender | Male |
| Insulation Material | Rubber |
| Lead Free | Contains Lead |
| Length | 48.41mm |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-26482 |
| Min Operating Temperature | -55°C |
| Mount | Cable, Free Hanging |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | MS 26482 I |
| Shell Material | Aluminium |
| Shell Size | 8 |
| Strain Relief | Yes (With) |
| Termination | Solder |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Not Compliant |
Datasheet
Amphenol MS3116F8-4P Datasheet
Download the complete datasheet for Amphenol MS3116F8-4P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
