PT00E-12-8P

Datasheet

8 Pos Circular Connector, MIL-DTL-26482, 7.5A, 1kV, Solder, Aluminum

Amphenol

PT00E-12-8P

Name: PT00E-12-8P Amphenol
Brand: Amphenol
SKU: PT00E-12-8P

8 Pos Circular Connector, MIL-DTL-26482, 7.5A, 1kV, Solder, Aluminum

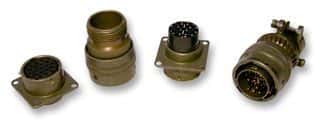

Circular connector, 8-position male pin receptacle with straight orientation. Features aluminum shell with cadmium plating and green color. Offers a 7.5A current rating and 1kV voltage rating, withstanding temperatures from -55°C to 125°C. Designed for wall mount applications with solder termination and copper alloy contacts with gold plating. Meets MIL-DTL-26482 Series I standards and is environment sealed and resistant.

Voltage Rating1kV

Current Rating7.5A

MountingPanel, Flanges, Wall

Quick Jump:

Chat with Datasheet

Technical Specifications

Amphenol PT00E-12-8P technical specifications.

General

Approvals	UL
Body Material	Aluminium
Body Plating	Cadmium
Color	Green
Contact Finish - Mating	GOLD
Contact Gender	Male
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Pin
Current Rating	7.5A
Gender	Receptacle
Max Operating Temperature	125°C
Military Standard	MIL-DTL-26482
Min Operating Temperature	-55°C
Mount	Panel, Flanges, Wall
Number of Contacts	8
Number of Positions	8
Orientation	Straight
Packaging	Bulk
Plating	Cadmium, Chromate
Radiation Hardening	No
Ratings	Environment Sealed, Environment Resistant
Reach SVHC Compliant	No
RoHS Compliant	No
Series	MIL-DTL-26482 Series I, PT
Shell Finish	Cadmium
Shell Material	Aluminium
Shell Size	12
Shielding	Unshielded
Termination	Solder
Voltage Rating	1kV
Voltage Rating (AC)	600V
