Circular connector, receptacle gender, with 6 female contacts in a straight orientation. Features a copper alloy contact material with gold plating and a solder termination. The aluminium body with cadmium plating ensures durability, operating from -55°C to 125°C. Designed for box mount applications, this connector conforms to MIL-DTL-26482 Series I standards.
MountingPanel, Flanges, Box
Quick Jump:
Technical Specifications
Amphenol PT02A-10-6SW technical specifications.
General
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Color | Green |
| Contact Finish - Mating | GOLD |
| Contact Gender | Female |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Depth | 23.82mm |
| Gender | Receptacle |
| Length | 24.33mm |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-26482 |
| Min Operating Temperature | -55°C |
| Mount | Panel, Flanges, Box |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Cadmium |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | MIL-DTL-26482 Series I, PT |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Shell Plating | Cadmium |
| Shell Size | 10 |
| Shielding | Unshielded |
| Strain Relief | No (Without) |
| Termination | Solder |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol PT02A-10-6SW Datasheet
Download the complete datasheet for Amphenol PT02A-10-6SW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

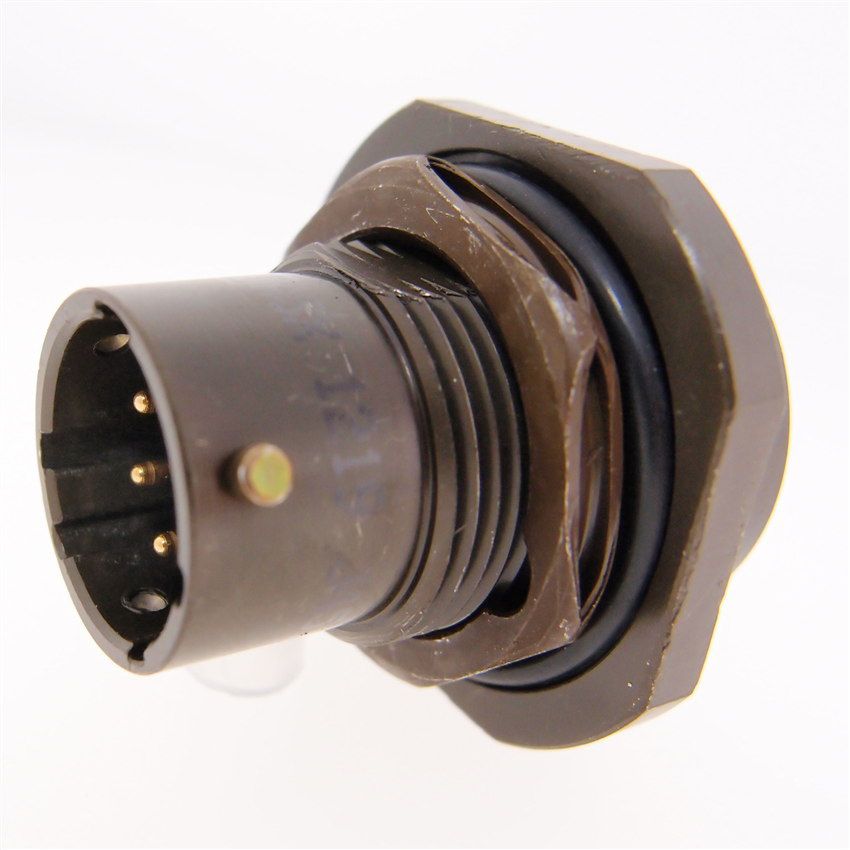

Product Images
