5-position, male pin receptacle with straight orientation, designed for box mount applications. Features a 14 shell size, aluminum body with cadmium plating, and gold-plated copper alloy contacts. Rated for 13A current and 1kV voltage, with solder termination for wire gauges 16-20 AWG. Compliant with MIL-DTL-26482 Series I standards.
Voltage Rating1kV
Current Rating13A
MountingPanel, Flanges, Box
Quick Jump:
Technical Specifications
Amphenol PT02A-14-5P technical specifications.
General
| Approvals | UL |
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Color | Green |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Type | Pin |
| Current Rating | 13A |
| Depth | 28.57mm |
| Gender | Receptacle |
| Military Standard | MIL-DTL-26482 |
| Mount | Panel, Flanges, Box |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | MIL-DTL-26482 Series I, PT |
| Shell Material | Aluminium |
| Shell Plating | Cadmium |
| Shell Size | 14 |
| Strain Relief | No (Without) |
| Termination | Solder |
| Voltage Rating | 1kV |
| Voltage Rating (AC) | 1kV |
| Wire Gauge (Max) | 20AWG |
| Wire Gauge (Min) | 16AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol PT02A-14-5P Datasheet
Download the complete datasheet for Amphenol PT02A-14-5P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

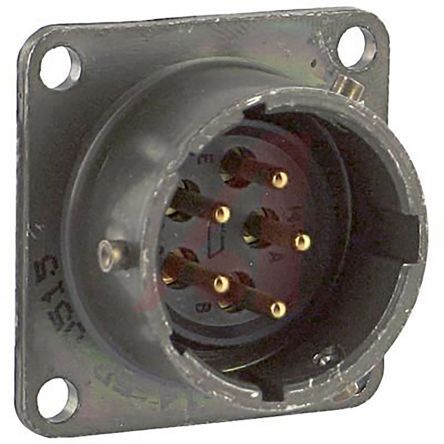

Product Images
