MIL-DTL-26482 Series I, PT circular connector, receptacle gender, with 2 male pin contacts. Features a straight, solder termination with a 7.5A current rating and 600V voltage rating. Constructed with an aluminum alloy shell and body, offering a green, cadmium/chromate shell finish. Operates within a -55°C to 125°C temperature range, with gold-plated copper alloy contacts. Panel mountable with flanges and box, suitable for wire gauges 20-24AWG.
PackageMetal
Voltage Rating600V
Current Rating7.5A
MountingPanel, Flanges, Box
Quick Jump:
Technical Specifications
Amphenol PT02A-8-2P technical specifications.
General
| Approvals | UL |
| Body Material | Aluminium |
| Package/Case | Metal |
| Color | Green |
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Type | Pin |
| Current Rating | 7.5A |
| Gender | Receptacle |
| Insulation Material | Rubber |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-26482 |
| Min Operating Temperature | -55°C |
| Mount | Panel, Flanges, Box |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | MIL-DTL-26482 Series I, PT |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Shell Size | 8 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol PT02A-8-2P Datasheet
Download the complete datasheet for Amphenol PT02A-8-2P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

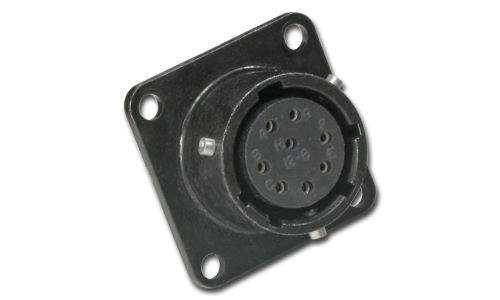

Product Images
