MIL-DTL-26482 Series I circular connector, receptacle gender, with 6 male pin contacts. Features a straight, panel mount orientation with solder termination and a 600V voltage rating. Constructed with an aluminum alloy shell and body, plated in cadmium with chromate, and copper alloy contacts with gold plating. Operates within a -55°C to 125°C temperature range, rated for 7.5A current, and is environment sealed and resistant.
PackageMetal
Voltage Rating600V
Current Rating7.5A
MountingPanel, Flanges, Box
Quick Jump:
Technical Specifications
Amphenol PT02E-10-6P technical specifications.
General
Approvals
UL
Body Material
Aluminium
Body Plating
Cadmium
Package/Case
Metal
Color
Green
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Copper Alloy
Contact Plating
Gold
Contact Type
Pin
Current Rating
7.5A
Depth
23.82mm
Gender
Receptacle
Insulation Material
Rubber
Lead Free
Contains Lead
Length
24.33mm
Max Operating Temperature
125°C
Military Standard
MIL-DTL-26482
Min Operating Temperature
-55°C
Mount
Panel, Flanges, Box
Number of Contacts
6
Number of Positions
6
Orientation
Straight
Packaging
Bulk
Plating
Cadmium, Chromate
Radiation Hardening
No
Ratings
Environment Sealed, Environment Resistant
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Series
MIL-DTL-26482 Series I, PT
Shell Finish
Cadmium
Shell Material
Aluminium
Shell Plating
Cadmium
Shell Size
10
Shielding
Unshielded
Strain Relief
No (Without)
Termination
Solder
Voltage Rating
600V
Voltage Rating (AC)
600V
Wire Gauge (Max)
24AWG
Wire Gauge (Min)
20AWG
Compliance
RoHS
Not CompliantNo
Datasheet
Amphenol PT02E-10-6P Datasheet
Download the complete datasheet for Amphenol PT02E-10-6P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

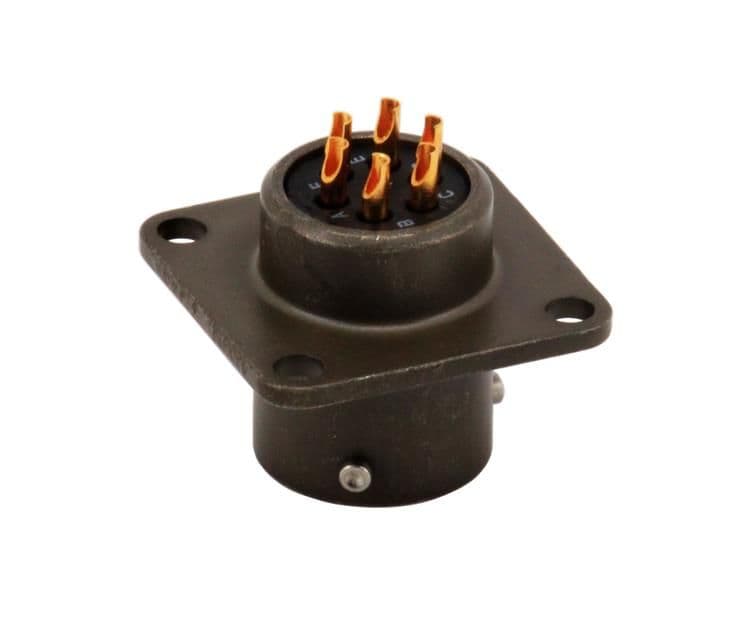

Product Images
