MIL-DTL-26482 Series I, PT circular connector, plug type, featuring 6 male pin contacts with gold plating and copper alloy material. This straight, free-hanging connector offers a 7.5A current rating and 600V voltage rating, with a solder termination suitable for 20-24AWG wire. Constructed from aluminum alloy with cadmium plating, it operates within a -55°C to 125°C temperature range and includes strain relief.
PackageMetal
Voltage Rating600V
Current Rating7.5A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol PT06A-10-6P(SR) technical specifications.
General
Approvals
UL
Body Material
Aluminium
Body Plating
Cadmium
Package/Case
Metal
Color
Green
Contact Finish - Mating
GOLD
Contact Gender
Male
Contact Material
Copper Alloy
Contact Plating
Gold
Contact Type
Pin
Current Rating
7.5A
Gender
Male
Insulation Material
Rubber
Lead Free
Contains Lead
Max Operating Temperature
125°C
Military Standard
MIL-DTL-26482
Min Operating Temperature
-55°C
Mount
Free Hanging, Cable
Number of Contacts
6
Number of Positions
6
Orientation
Straight
Packaging
Bulk
Plating
Cadmium, Chromate
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Series
MIL-DTL-26482 Series I, PT
Shell Finish
Cadmium
Shell Material
Aluminium
Shell Plating
Cadmium
Shell Size
10
Shielding
Unshielded
Strain Relief
Yes (With)
Termination
Solder
Voltage Rating
600V
Voltage Rating (AC)
600V
Wire Gauge (Max)
24AWG
Wire Gauge (Min)
20AWG
Compliance
RoHS
Not CompliantNo
Datasheet
Amphenol PT06A-10-6P(SR) Datasheet
Download the complete datasheet for Amphenol PT06A-10-6P(SR) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

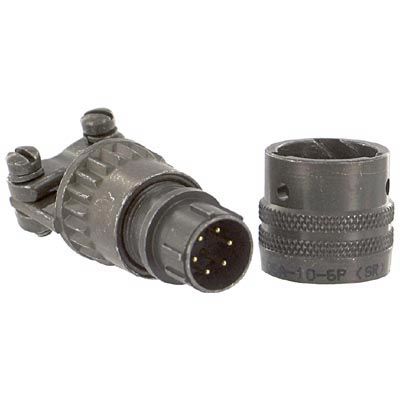

Product Images
