This MIL-DTL-26482 compliant circular connector is a straight, female plug featuring 6 contacts with gold-plated copper alloy sockets. Its robust aluminum alloy shell, rated for 600V AC, is designed for free-hanging, cable mounting and operates within a temperature range of -55°C to 125°C. The connector utilizes rubber insulation and a solder termination method, with a black finish and a metal package. It is RoHS compliant and lead-free.
PackageMetal
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol PT06A-10-6S(470) technical specifications.
General
| Approvals | UL |
| Body Material | Aluminium |
| Package/Case | Metal |
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Gender | Female |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Socket |
| Gender | Female |
| Insulation Material | Rubber |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-26482 |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Orientation | Straight |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Shell Material | Aluminium |
| Shell Size | 10 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating (AC) | 600V |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol PT06A-10-6S(470) Datasheet
Download the complete datasheet for Amphenol PT06A-10-6S(470) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

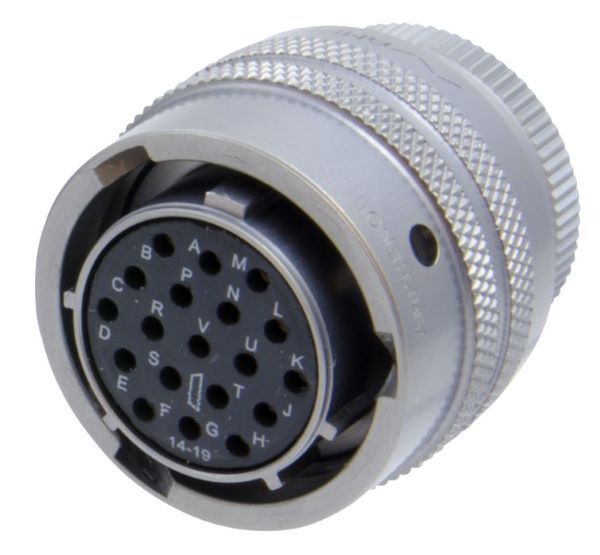

Product Images
