Circular connector, 18-position female plug with solder termination. Features a straight, free-hanging, cable mount design with aluminum alloy shell and cadmium plating. Contact material is copper alloy with gold plating, rated for 7.5A current and 600V voltage. Operating temperature range is -55°C to 125°C, with a maximum wire gauge of 24AWG. Meets MIL-DTL-26482 military standard and includes strain relief.
PackageMetal
Voltage Rating600V
Current Rating7.5A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol PT06A-14-18S(SR) technical specifications.
General
| Approvals | UL |
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Package/Case | Metal |
| Contact Gender | Female |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Type | Socket |
| Current Rating | 7.5A |
| Gender | Female |
| Length | 48.41mm |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-26482 |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 18 |
| Number of Positions | 18 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Shell Material | Aluminium |
| Shell Plating | Cadmium |
| Shell Size | 14 |
| Strain Relief | Yes (With) |
| Termination | Solder |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol PT06A-14-18S(SR) Datasheet
Download the complete datasheet for Amphenol PT06A-14-18S(SR) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

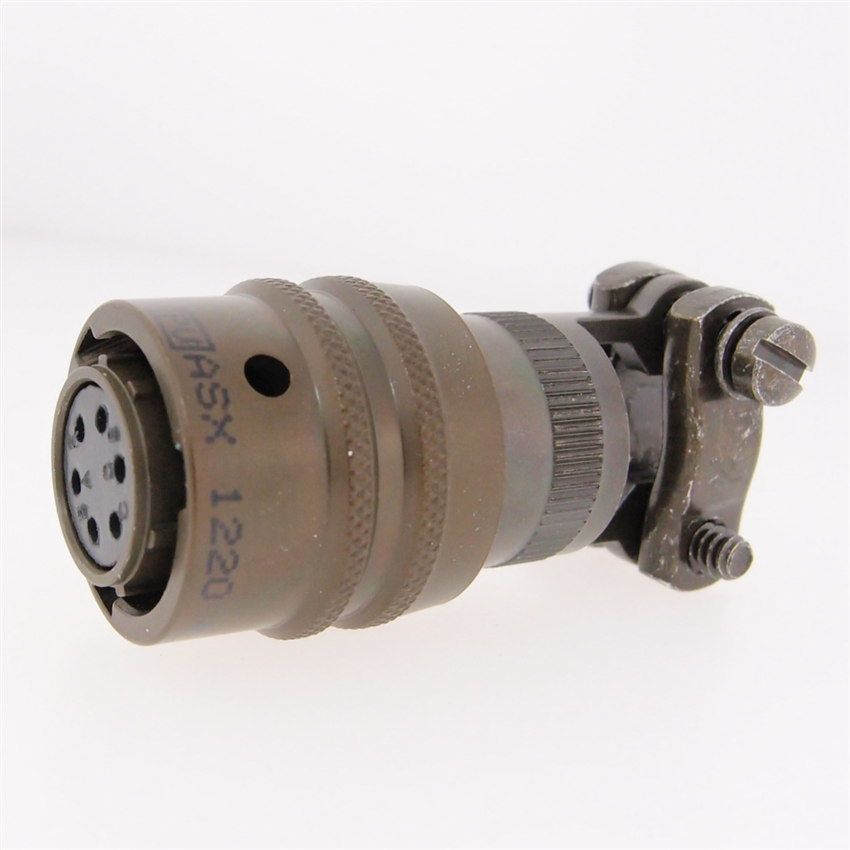

Product Images
