General purpose circular connector, MIL-DTL-26482 Series I, featuring 41 male pin contacts in a size 20 shell. This straight plug offers a 7.5A current rating and 600V voltage rating, with copper alloy contacts plated in gold. The aluminum body is cadmium plated, suitable for operating temperatures from -55°C to 125°C, and designed for solder termination with wire gauges from 20AWG to 24AWG.
Voltage Rating600V
Current Rating7.5A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol PT06A-20-41P technical specifications.
General
| Approvals | UL |
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Type | Pin |
| Current Rating | 7.5A |
| Gender | Male |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-26482 |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 41 |
| Number of Positions | 41 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | MIL-DTL-26482 Series I, PT |
| Shell Material | Aluminium |
| Shell Size | 20 |
| Termination | Solder |
| Voltage Rating | 600V |
| Voltage Rating (AC) | 600V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol PT06A-20-41P Datasheet
Download the complete datasheet for Amphenol PT06A-20-41P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

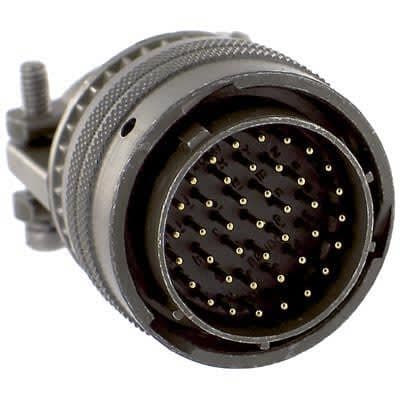

Product Images
