MIL-DTL-26482 Series I, PT circular connector, male, 2-contact plug with solder terminal. Features a straight, free-hanging, cable mount design with a robust aluminum alloy shell, cadmium plating, and a green finish. Offers a 1kV voltage rating and operates between -55°C and 125°C, with gold-plated copper alloy contacts. Includes strain relief and is unshielded.
PackageMetal
Voltage Rating1kV
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol PT06A-8-2P(SR) technical specifications.
General
| Approvals | UL |
| Body Material | Aluminium |
| Package/Case | Metal |
| Color | Green |
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Type | Pin |
| Gender | Male |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-26482 |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Cadmium |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | MIL-DTL-26482 Series I, PT |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Shell Size | 8 |
| Shielding | Unshielded |
| Strain Relief | Yes (With) |
| Termination | Solder |
| Voltage Rating | 1kV |
Compliance
| RoHS | Not Compliant |
Datasheet
Amphenol PT06A-8-2P(SR) Datasheet
Download the complete datasheet for Amphenol PT06A-8-2P(SR) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

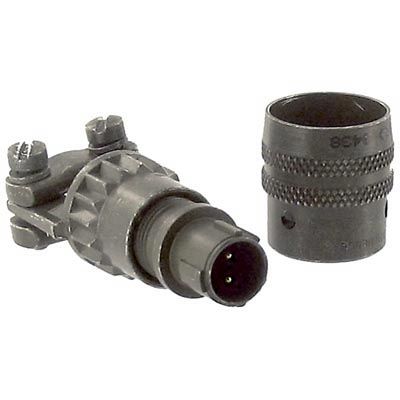

Product Images
