Circular connector featuring 2 male pin contacts with gold plating, designed for solder termination. This straight, cable mountable component boasts a 7.5A current rating and operates within a temperature range of -55°C to 125°C. Constructed with an aluminum body and shell, it meets MIL-DTL-26482 specifications and is UL approved, offering environment-resistant capabilities.
PackageMetal
Current Rating7.5A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol PT06E-8-2P technical specifications.
General
| Approvals | UL |
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Package/Case | Metal |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Type | Pin |
| Current Rating | 7.5A |
| Gender | Male |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-26482 |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | Environment Resistant |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | MIL-DTL-26482 Series I, PT |
| Shell Material | Aluminium |
| Shell Size | 8 |
| Termination | Solder |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol PT06E-8-2P Datasheet
Download the complete datasheet for Amphenol PT06E-8-2P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

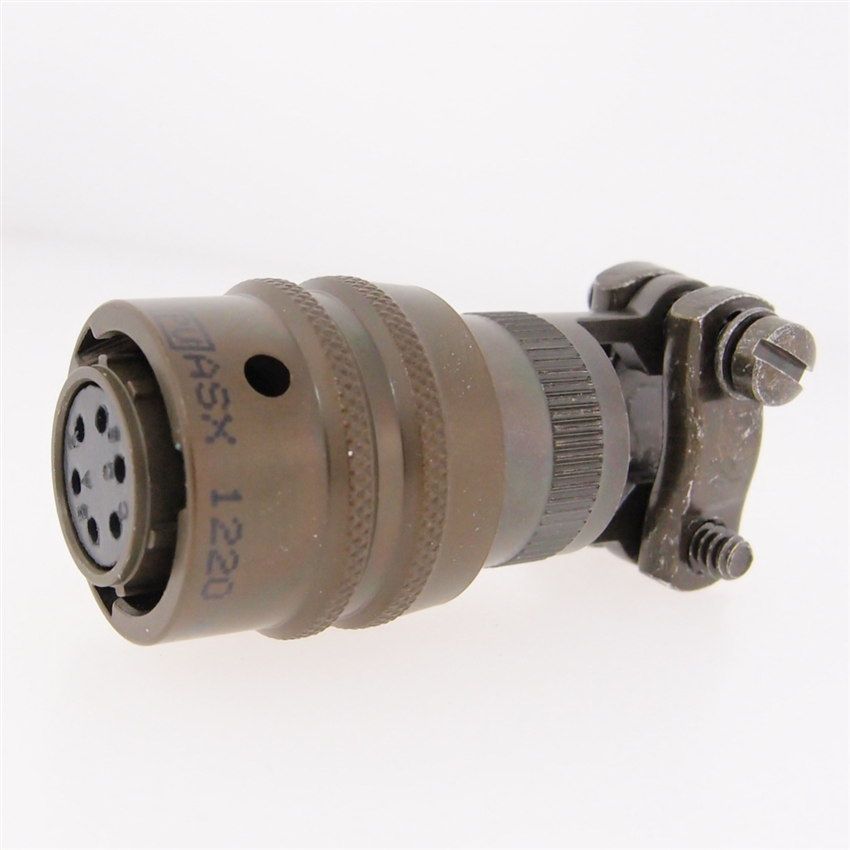

Product Images
