MIL-DTL-26482 Series I circular connector, shell size 8, featuring 4 contacts with gold-plated copper alloy sockets. This straight plug offers a 7.5A current rating and 600V voltage rating, with solder termination for 20-24AWG wire. Constructed from aluminum alloy with cadmium plating, it provides an environment-sealed design and operates between -55°C and 125°C.
PackageMetal
Voltage Rating600V
Current Rating7.5A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol PT06E-8-4S technical specifications.
General
| Approvals | UL |
| Body Material | Aluminium |
| Body Plating | Cadmium |
| Package/Case | Metal |
| Color | Green |
| Contact Finish - Mating | GOLD |
| Contact Gender | Female |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Type | Socket |
| Current Rating | 7.5A |
| Gender | Receptacle |
| Insulation Material | Rubber |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Military Standard | MIL-DTL-26482 |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Cadmium, Chromate |
| Radiation Hardening | No |
| Ratings | Environment Sealed |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | MIL-DTL-26482 Series I, PT |
| Shell Finish | Cadmium |
| Shell Material | Aluminium |
| Shell Size | 8 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 600V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol PT06E-8-4S Datasheet
Download the complete datasheet for Amphenol PT06E-8-4S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

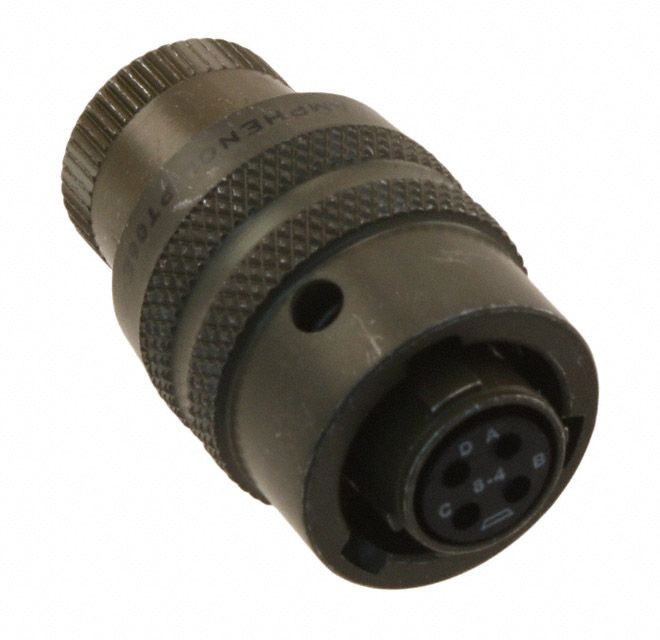

Product Images
