Sealed, straight rectangular connector receptacle with RJ45 termination. Features 8 contacts in a female configuration, housed in a black metal package with a panel, bulkhead, front side nut, and jam nut mount. Rated IP68 and IP67 for waterproof and dust-tight performance, operating between -40°C and 85°C with a UL94 V-0 flammability rating. This lead-free component is RoHS compliant.
PackageMetal
MountingPanel, Bulkhead, Front Side Nut, Jam Nut
Quick Jump:
Technical Specifications
Amphenol RJF71B technical specifications.
General
| Package/Case | Metal |
| Color | Black |
| Contact Gender | Female |
| Depth | 41.3mm |
| Diameter | 41mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Lead Free | Lead Free |
| Length | 39.1mm |
| Material | Metal |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Panel, Bulkhead, Front Side Nut, Jam Nut |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Number of Positions Loaded | 8 |
| Orientation | Straight |
| Packaging | Bulk |
| Primary Type | Sealed |
| Ratings | IP68, IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | RJF |
| Shielding | Unshielded |
| Termination | RJ45 |
| Width | 41.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol RJF71B Datasheet
Download the complete datasheet for Amphenol RJF71B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

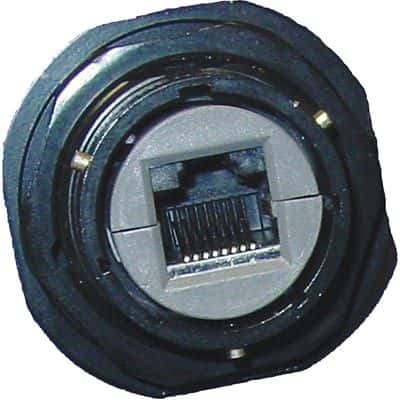

Product Images
