Rectangular connector adapter featuring 8 contacts, female-female configuration, and straight orientation. Constructed with a green metal body and housing, it offers panel, bulkhead, and jam nut mounting options. This adapter operates within a temperature range of -40°C to 85°C, boasts IP68 and IP67 ratings for waterproof and dust-tight performance, and meets UL94 V-0 flammability standards. The contact plating and finish utilize cadmium.
PackageMetal
MountingPanel, Bulkhead, Front Side Nut, Jam Nut
Quick Jump:
Technical Specifications
Amphenol RJF71G technical specifications.
General
| Body Material | Metal |
| Package/Case | Metal |
| Color | Green |
| Contact Plating | Cadmium |
| Depth | 41.3mm |
| Finish | Cadmium |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Lead Free | Lead Free |
| Length | 39.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Panel, Bulkhead, Front Side Nut, Jam Nut |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Number of Positions Loaded | 8 |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | IP68, IP67, Waterproof, Dust Tight |
| RoHS Compliant | No |
| Series | RJF |
| Shielding | Unshielded |
| Termination | RJ45 |
Compliance
| RoHS | Not Compliant |
Datasheet
Amphenol RJF71G Datasheet
Download the complete datasheet for Amphenol RJF71G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

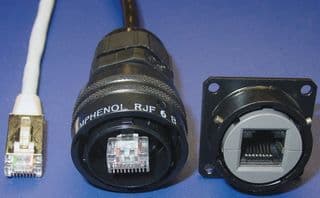

Product Images
