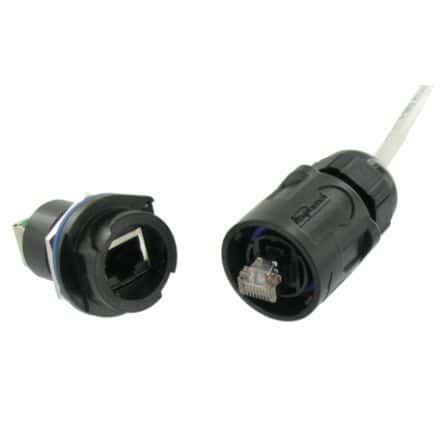

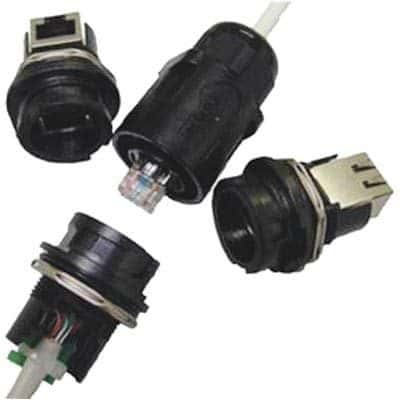

Rectangular connector, ETHERNET primary type, featuring 8 contacts and 8 loaded positions. This male connector offers a straight orientation with solder termination and a free hanging, cable mount. Rated IP68 and IP67 for waterproof and dust-tight performance, it operates within a temperature range of -40°C to 85°C and supports 500 mating cycles. The black connector has a length of 61.94mm, depth of 35.3mm, and a UL94 V-0 flammability rating, with RoHS compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Amphenol RJFRB6 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Black |
| Depth | 35.3mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Lead Free | Lead Free |
| Length | 61.94mm |
| Mating Cycles | 500 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions Loaded | 8 |
| Orientation | Straight |
| Packaging | Bulk |
| Primary Type | ETHERNET |
| Radiation Hardening | No |
| Ratings | IP68, IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | RJF RB |
| Shielding | Unshielded |
| Termination | Solder |
| RoHS | Compliant |
