Shielded, right-angle RJ45 connector with 4 ports and 32 loaded positions. Features gold-plated bronze contacts and a 1.5A current rating. Operates within a temperature range of -20°C to 85°C and supports up to 125V AC. Through-hole termination and UL94 V-0 flammability rating.
Voltage Rating125V
Current Rating1.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Amphenol RJHSE-5384-04 technical specifications.
General
| Color | Black, Green, Yellow |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Depth | 15.76mm |
| Direction | Up |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Length | 63.75mm |
| Max Current Rating | 1.5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 125V |
| Mount | Through Hole |
| Number of Contacts | 8 |
| Number of Ports | 4 |
| Number of Positions | 8 |
| Number of Positions Loaded | 32 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 40 |
| Packaging | Tray |
| Pitch | 2.03mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | RJHSE |
| Shielding | Shielded |
| Termination | Through Hole |
| Voltage Rating | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol RJHSE-5384-04 Datasheet
Download the complete datasheet for Amphenol RJHSE-5384-04 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

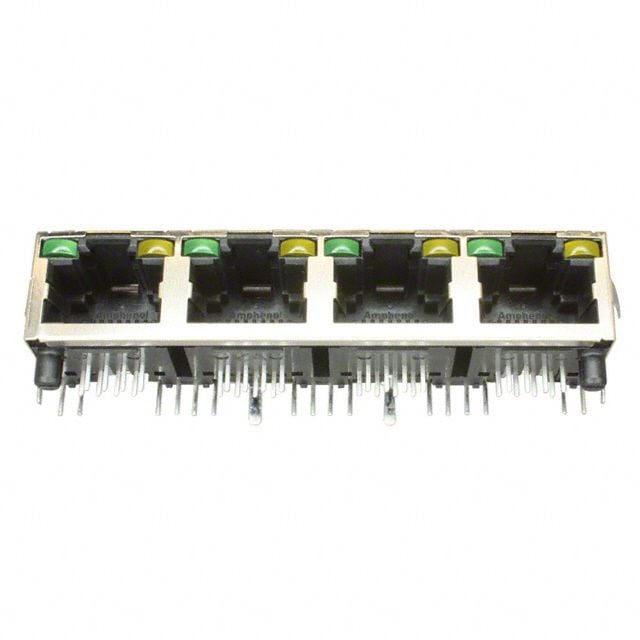

Product Images
