23-position, inline female plug housing for circular connectors. Features a straight orientation and zinc alloy shell with nickel plating. Rated for 13A current and 300V, with a temperature range of -40°C to 105°C. This sealed connector is waterproof and dust-tight (IP67), utilizing crimp termination for 16AWG wire. Mountable free hanging or wall.
Voltage Rating300V
Current Rating13A
MountingFree Hanging, Wall
Quick Jump:
Technical Specifications
Amphenol RT0618-23SNH technical specifications.
General
| Body Material | ZINC ALLOY |
| Contact Gender | Female |
| Contact Type | CRIMP |
| Current Rating | 13A |
| Insulation Material | Thermoplastic |
| Max Current Rating | 13A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Wall |
| Number of Contacts | 23 |
| Number of Positions | 23 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Plating | Nickel |
| Primary Type | Sealed |
| Radiation Hardening | No |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Eco|mate® RM |
| Shell Material | ZINC ALLOY |
| Shell Plating | Nickel |
| Shell Size | 18 |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Voltage Rating | 300V |
| Wire/Cable Gauge | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol RT0618-23SNH Datasheet
Download the complete datasheet for Amphenol RT0618-23SNH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

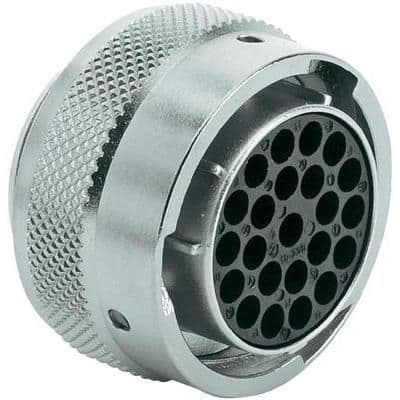

Product Images
