Technical Specifications
Amphenol SF2950-6062 technical specifications.
General
| Body Material | Stainless Steel |
| Body Plating | Stainless Steel |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Copper, BERYLLIUM COPPER ALLOY |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Gender | Female |
| Housing Color | Silver |
| Impedance | 50R |
| Insulation Material | Polytetrafluoroethylene |
| Length | 14.85mm |
| Mating Cycles | 500 |
| Max Frequency | 18GHz |
| Mount | Panel, Flanges |
| Number of Ports | 1 |
| Operating Frequency | 0 ? 18GHz |
| Orientation | Straight |
| Packaging | Bulk |
| RoHS Compliant | No |
| Termination | Solder |
Compliance
| RoHS | Not Compliant |
Datasheet
Amphenol SF2950-6062 Datasheet
Download the complete datasheet for Amphenol SF2950-6062 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

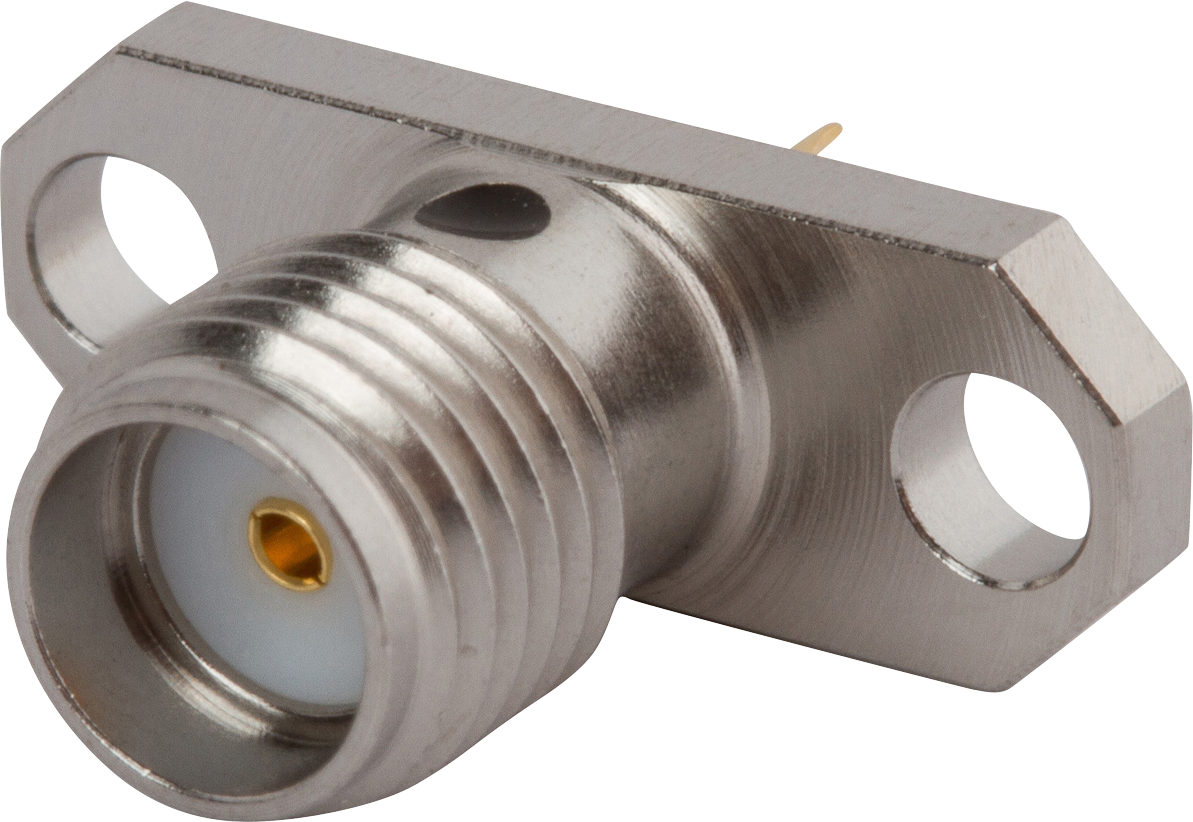

Product Images
