Straight RF coaxial adapter featuring a 50 Ohm impedance and a maximum operating frequency of 18GHz. This bulkhead mount connector has a stainless steel body, PTFE dielectric, and gold-plated copper and beryllium copper alloy center contacts. Designed for 500 mating cycles, it offers a normal polarity and a length of 22.22mm.
Frequency18GHz
PackageSMA
MountingPanel, Bulkhead
PolarityNormal
Quick Jump:
Technical Specifications
Amphenol SF2990-6005 technical specifications.
General
| Adapter Style | Straight |
| Body Material | Stainless Steel |
| Package/Case | SMA |
| Center Contact Plating | Gold |
| Contact Material | Copper, BERYLLIUM COPPER ALLOY |
| Contact Plating | Gold |
| Depth | 9.52mm |
| Dielectric Material | PTFE |
| Gender Type A | Female |
| Gender Type B | Female |
| Impedance | 50R |
| Insulation Material | Polytetrafluoroethylene |
| Length | 22.22mm |
| Mating Cycles | 500 |
| Max Frequency | 18GHz |
| Mount | Panel, Bulkhead |
| Operating Frequency | 0 ? 18GHz |
| Orientation | Straight |
| Packaging | Bulk |
| Polarity | Normal |
| RoHS Compliant | No |
Compliance
| RoHS | Not Compliant |
Datasheet
Amphenol SF2990-6005 Datasheet
Download the complete datasheet for Amphenol SF2990-6005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

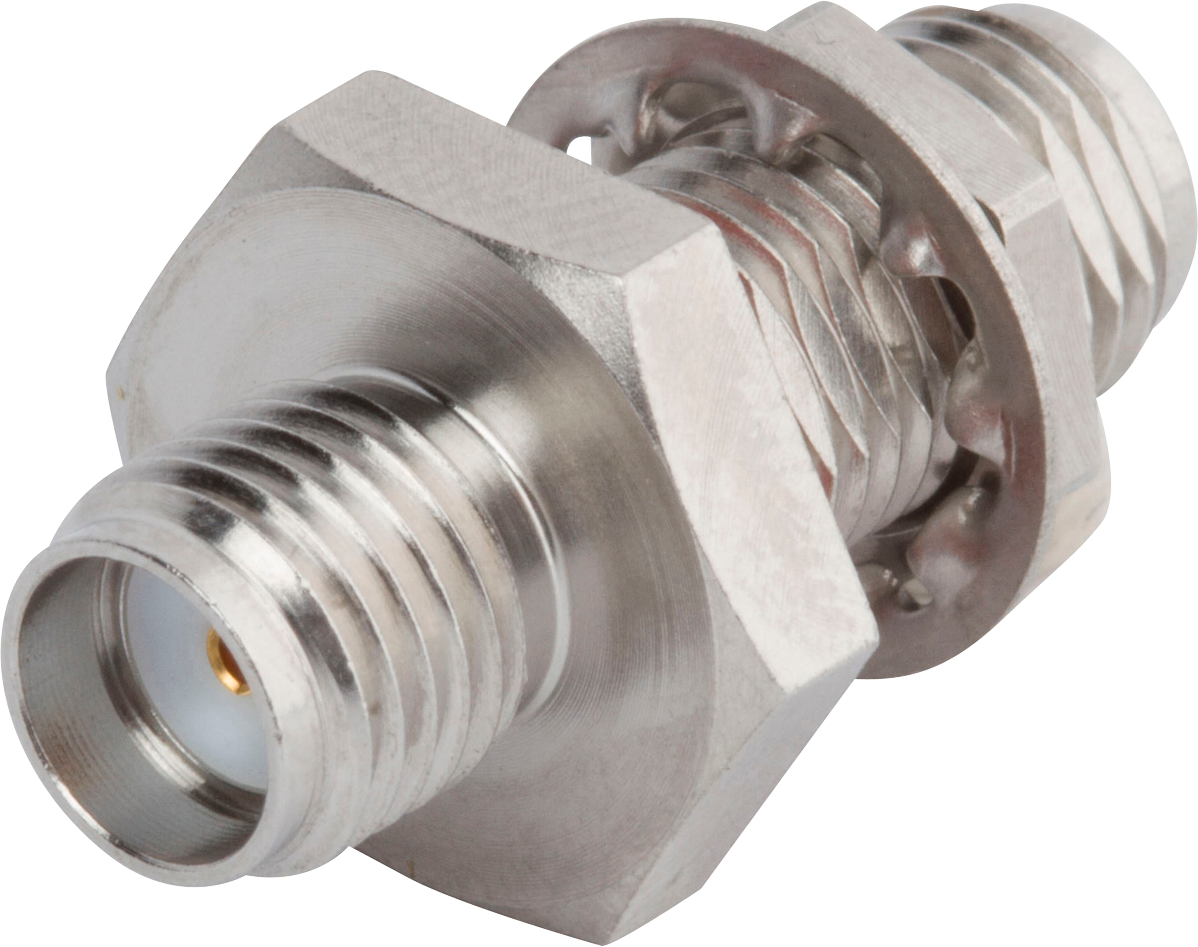

Product Images
