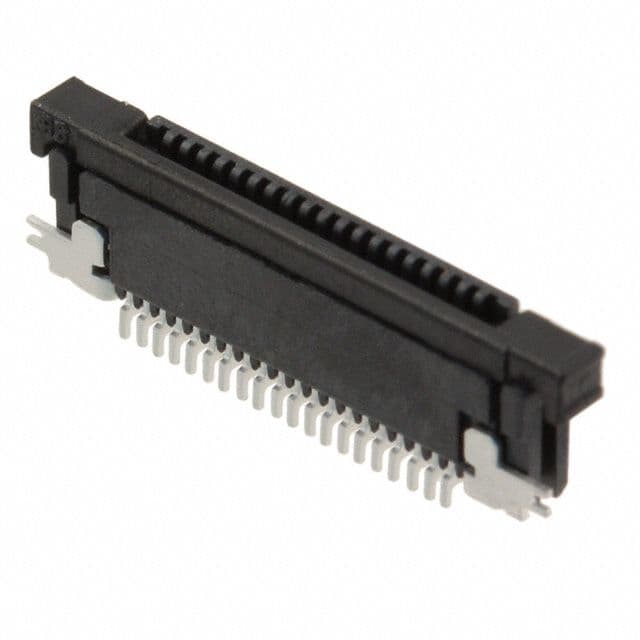

Right angle, surface mount card edge connector featuring 20 contacts in a single row with a 0.5mm pitch. This female header offers a 50V voltage rating and 500mA current rating, with tin-plated bronze contacts. Constructed with a black, UL94 V-0 rated glass-filled polyphenylene sulfide insulator, it operates across a -55°C to 105°C temperature range and includes a locking mechanism. Packaged on tape and reel, this RoHS compliant component is designed for straight wire/cable termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Amphenol SFV20R-2STE1HLF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Amphenol SFV20R-2STE1HLF technical specifications.
| Actuator Material | Glass, Polyphenylene |
| Contact Location | Top |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 500mA |
| Depth | 4.9mm |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Length | 15.5mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 50V |
| Max Voltage Rating (DC) | 50V |
| Mount | Surface Mount |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Pitch | 0.5mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SFV-R |
| Termination | Solder |
| Voltage Rating | 50V |
| Wire/Cable Type | Straight |
| RoHS | Compliant |
