Amphenol
SFV30R-4STBE1HLF
FFC/FPC Connector, 30 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, HALOGEN AND LEAD FREE
Voltage Rating50V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Amphenol SFV30R-4STBE1HLF technical specifications.
General
| Actuator Material | Glass, Polyphenylene |
| Contact Location | Top |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Flammability Rating | UL94 V-0 |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Positions | 30 |
| Package Quantity | 6000 |
| Packaging | Tape and Reel |
| Pitch | 0.02inch |
| RoHS Compliant | Yes |
| Series | SFV-R |
| Termination | Solder |
| Voltage Rating | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol SFV30R-4STBE1HLF Datasheet
Download the complete datasheet for Amphenol SFV30R-4STBE1HLF to view detailed technical specifications.
No datasheet is available for this part.

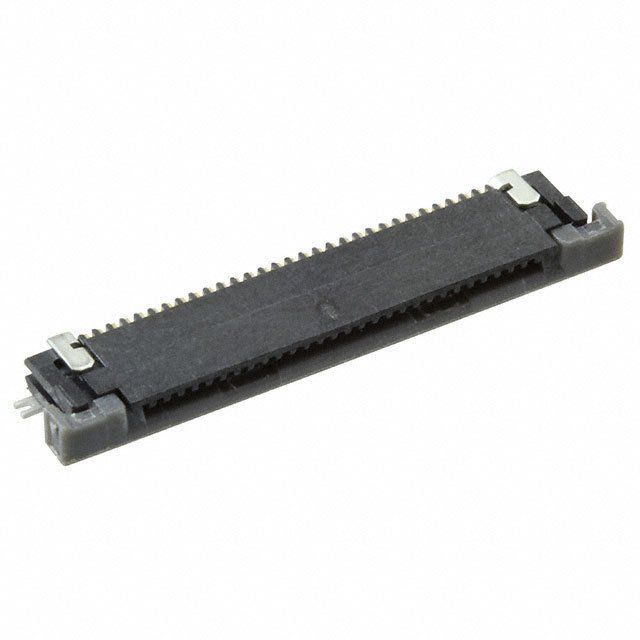

Product Images
