Right angle, surface mount card edge connector featuring 20 contacts in a single row. This female receptacle offers a 1mm pitch and is constructed with bronze contacts plated in tin, rated for 1A current and 100V AC/DC. The brown housing is made from glass and polyphenylene, with a UL94 V-0 flammability rating. Operating temperature range is -55°C to 105°C, and the component is lead-free and RoHS compliant.
Voltage Rating100V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Amphenol SFW20R-1STE1LF technical specifications.
General
| Actuator Material | Glass, Polyphenylene |
| Contact Location | Bottom |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 1A |
| Depth | 6mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Brown |
| Lead Free | Lead Free |
| Length | 25.8mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 100V |
| Max Voltage Rating (DC) | 100V |
| Mount | Surface Mount |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Pitch | 1mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SFW-R |
| Termination | Solder |
| Voltage Rating | 100V |
| Voltage Rating (AC) | 100V |
| Width | 5.5mm |
| Wire/Cable Type | Straight |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol SFW20R-1STE1LF Datasheet
Download the complete datasheet for Amphenol SFW20R-1STE1LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

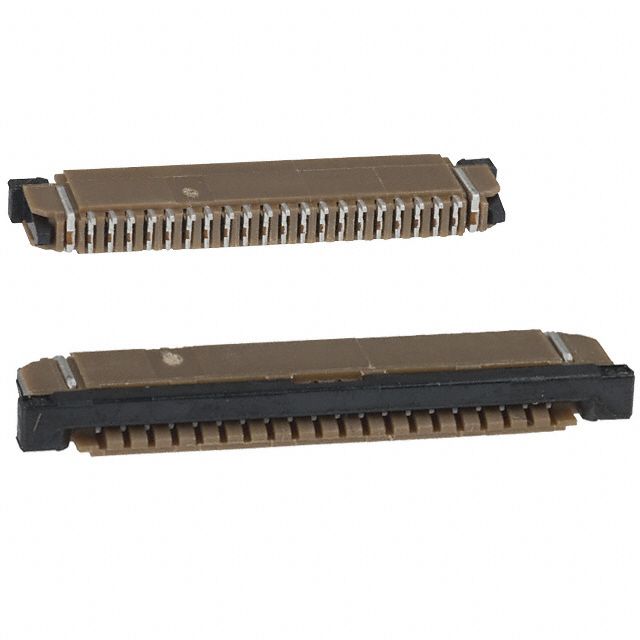

Product Images
