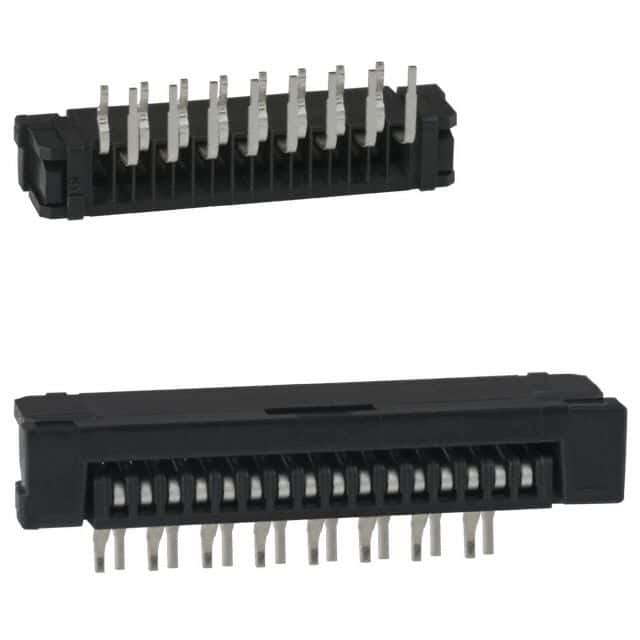

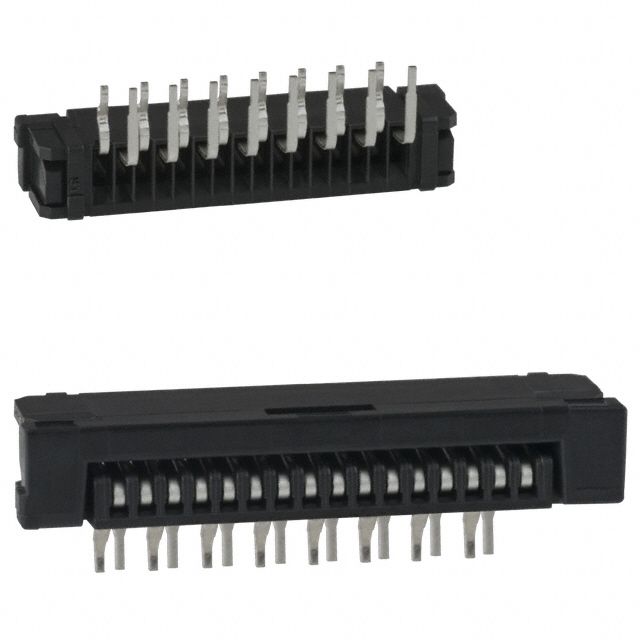

Right angle card edge connector featuring 16 contacts in a single row with a 1mm pitch. This female receptacle utilizes bronze contacts with tin plating and a kinked pin termination for through-hole mounting. Designed for a 1A current rating and 100V voltage rating, it operates within a temperature range of -55°C to 85°C. The connector is constructed with Nylon, Glass, Polyamide actuator material and boasts a UL94 V-0 flammability rating, ensuring lead-free and RoHS compliant operation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Amphenol SLW16R-1C7LF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Amphenol SLW16R-1C7LF technical specifications.
| Actuator Material | Nylon, Glass, Polyamide |
| Contact Location | Bottom |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 16 |
| Number of Positions | 16 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 120 |
| Packaging | Tray |
| Pitch | 1mm |
| RoHS Compliant | Yes |
| Series | SLW-R |
| Termination | Kinked Pin |
| Voltage Rating | 100V |
| Voltage Rating (AC) | 100V |
| Width | 5.5mm |
| Wire/Cable Type | Straight |
| RoHS | Compliant |
