This 1mm pitch card edge connector features 4 contacts in a single row, designed as a female receptacle with a straight orientation and through-hole termination. It offers a 1A current rating and a 100V voltage rating, with bronze contacts plated in tin. The black nylon, glass, polyamide housing is UL94 V-0 flammability rated and operates between -55°C and 85°C.
Voltage Rating100V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Amphenol SLW4S-1C7LF technical specifications.
General
| Actuator Material | Nylon, Glass, Polyamide |
| Contact Location | Bottom |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Current Rating | 1A |
| Depth | 4mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 10.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 100V |
| Max Voltage Rating (DC) | 100V |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 260 |
| Packaging | Tray |
| Pitch | 1mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SLW-S |
| Termination | Through Hole |
| Voltage Rating | 100V |
| Voltage Rating (AC) | 100V |
| Width | 4mm |
| Wire/Cable Type | Straight |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol SLW4S-1C7LF Datasheet
Download the complete datasheet for Amphenol SLW4S-1C7LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

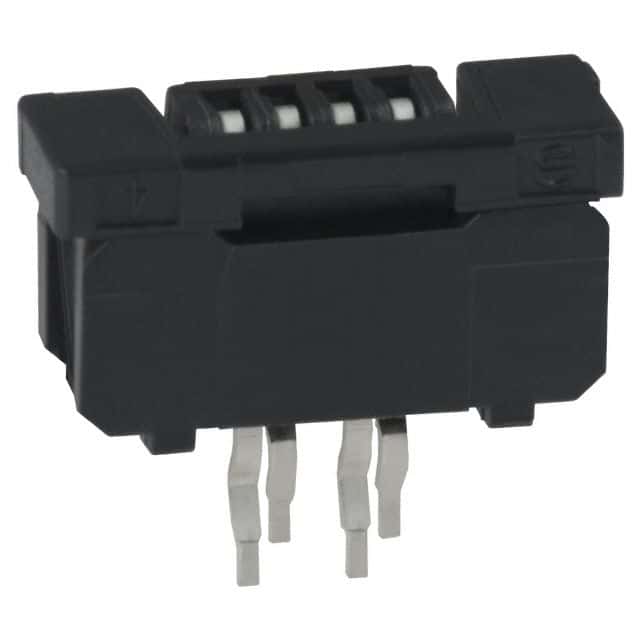

Product Images
