12-bit, 100 kSPS Analog-to-Digital Converter (ADC) featuring a single-ended input and parallel interface. This complete ADC offers a resolution of 12 bits and supports bipolar and unipolar operation. It operates with a dual supply voltage range of ±11.4V to ±16.5V and a single supply voltage from 4.5V to 16.5V. The component is housed in a PDIP package for through-hole mounting, with an integral nonlinearity of 0.5 LSB. Maximum power dissipation is 575mW, and it operates across an extended temperature range of -55°C to 125°C.
PackagePDIP
MountingThrough Hole
PolarityBipolar, Unipolar
Power385mW
Quick Jump:
Technical Specifications
Analog Devices AD1674KNZ technical specifications.
General
Package/Case
PDIP
Dual Supply Voltage
15V
Height
4.95mm
Input Type
SINGLE-ENDED
Integral Nonlinearity (INL)
0.5LSB
Interface
Parallel
Lead Free
Contains Lead
Length
39.75mm
Max Dual Supply Voltage
16.5V
Min Dual Supply Voltage
11.4V
Max Input Voltage
10.1V
Min Input Voltage
9.9V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
575mW
Max Supply Voltage
16.5V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of A/D Converters
1
Number of Analog Inputs
2
Number of Bits
12
Number of Channels
1
Number of Converters
1
Number of Elements
1
Number of Inputs
1
Package Quantity
13
Packaging
Rail/Tube
Polarity
Bipolar, Unipolar
Power Consumption
385mW
Power Dissipation
575mW
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Sampling Rate
100KS/s
Width
14.73mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices AD1674KNZ Datasheet
Download the complete datasheet for Analog Devices AD1674KNZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

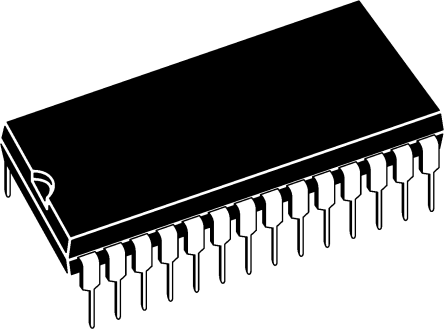

Product Images
